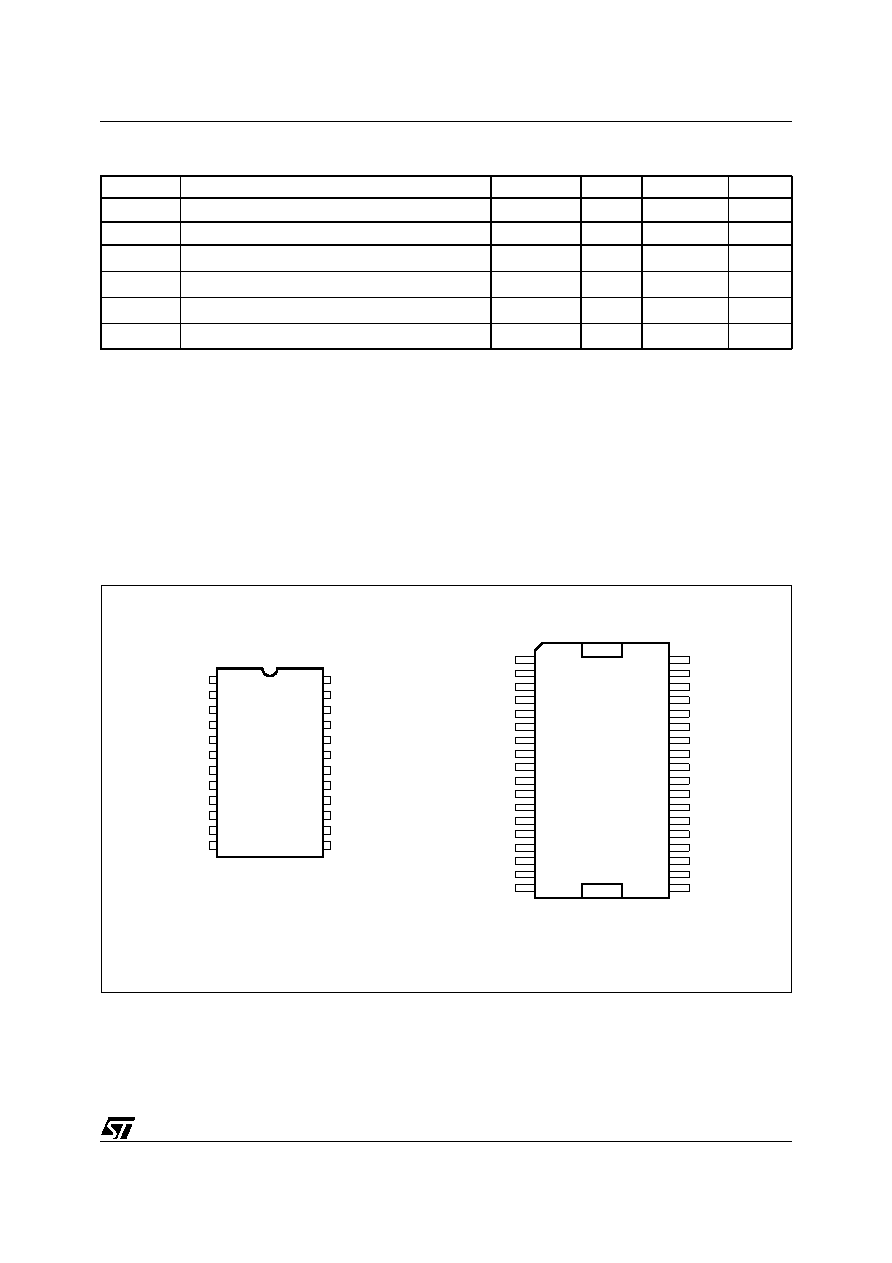

3/26
L6228
THERMAL DATA
PIN CONNECTIONS (Top View)
(5)
The slug is internally connected to pins 1,18,19 and 36 (GND pins).
Symbol
Description
PowerDIP24
SO24
PowerSO36
Unit
Rth-j-pins
Maximum Thermal Resistance Junction-Pins
19
15
-
°C/W
Rth-j-case
Maximum Thermal Resistance Junction-Case
-
2
°C/W
Rth-j-amb1
Maximum Thermal Resistance Junction-Ambient (1)
(1)
Mounted on a multi-layer FR4 PCB with a dissipating copper surface on the bottom side of 6cm2 (with a thickness of 35m).
44
55
-
°C/W
Rth-j-amb1
Maximum Thermal Resistance Junction-Ambient (2)
(2)
Mounted on a multi-layer FR4 PCB with a dissipating copper surface on the top side of 6cm2 (with a thickness of 35m).
--
36
°C/W
Rth-j-amb1
Maximum Thermal Resistance Junction-Ambient (3)
(3)
Mounted on a multi-layer FR4 PCB with a dissipating copper surface on the top side of 6cm2 (with a thickness of 35m), 16 via holes
and a ground layer.
--
16
°C/W
Rth-j-amb2
Maximum Thermal Resistance Junction-Ambient (4)
(4)
Mounted on a multi-layer FR4 PCB without any heat sinking surface on the board.
59
78
63
°C/W
GND
OUT1B
RCB
SENSEB
HALF/FULL
VREFB
1
3
2
4
5
6
7
8
9
CONTROL
VBOOT
EN
OUT2B
VSB
GND
19
18
17
16
15
13
14
D99IN1083
10
11
12
24
23
22
21
20
CLOCK
CW/CCW
SENSEA
RCA
OUT1A
VSA
OUT2A
VCP
RESET
VREFA
GND
N.C.
VSA
RCA
OUT1A
N.C.
OUT1B
RCB
N.C.
VSB
N.C.
GND
18
16
17
15
6
5
4
3
2
21
22
31
32
33
35
34
36
20
1
19
GND
D99IN1084
CLOCK
SENSEA
CW/CCW
SENSEB
HALF/FULL
VREFB
9
8
7
28
29
30
VREFA
CONTROL
10
27
OUT2A
RESET
VCP
EN
OUT2B
VBOOT
14
12
11
23
25
26
N.C.
13
24
PowerDIP24/SO24
PowerSO36 (5)
