INDUSTRIAL TEMPERATURE RANGE
IDT74ALVCHR162245
3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
1
JULY 2009
INDUSTRIAL TEMPERATURE RANGE
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
2009 Integrated Device Technology, Inc.
DSC-4606/5
FEATURES:
0.5 MICRON CMOS Technology
Typical tSK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
VCC = 3.3V ± 0.3V, Normal Range
VCC = 2.7V to 3.6V, Extended Range
VCC = 2.5V ± 0.2V
CMOS power levels (0.4
μμμμμ W typ. static)
Rail-to-Rail output swing for increased noise margin
Available in TSSOP package

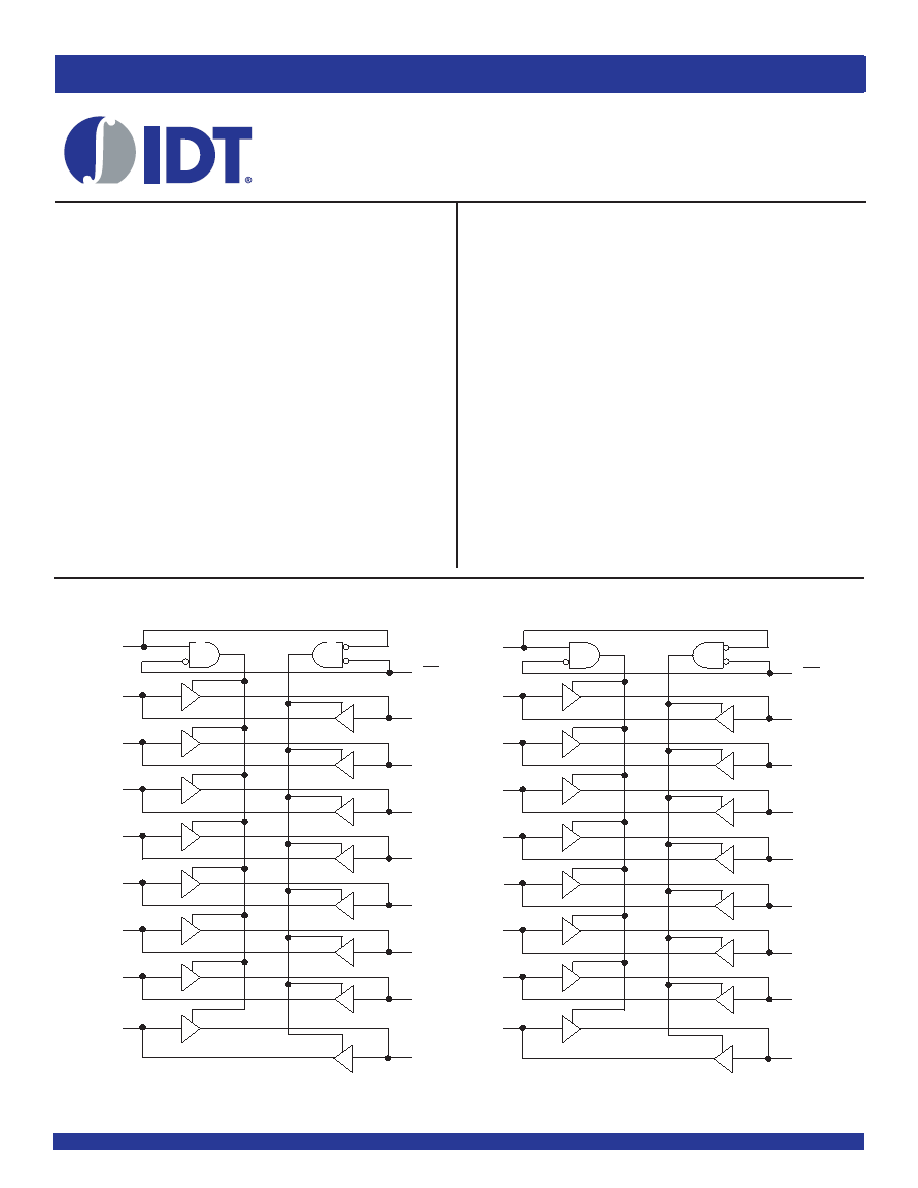

FUNCTIONAL BLOCK DIAGRAM
IDT74ALVCHR162245
3.3V CMOS 16-BIT
BUS TRANSCIEVER
WITH 3-STATE OUTPUTS
AND BUS-HOLD
APPLICATIONS:
3.3V high speed systems
3.3V and lower voltage computing systems
DRIVE FEATURES:
Balanced Output Drivers: ±12mA
Low Switching Noise
DESCRIPTION:
This 16-bit bus transceiver is built using advanced dual metal CMOS
technology. The ALVCHR162245 device is designed for asynchronous
communication between data buses. The control-function implementation
minimizes external timing requirements.
This device can be used as two 8-bit transceivers or one 16-bit
transceiver. It allows data transmission from the A bus to the B bus or from
the B bus to the A bus, depending on the logic level at the direction control
(DIR) input. The output-enable (
OE) input can be used to disable the device
so that the buses are effectively isolated.
The ALVCHR162245 has series resistors in the device output structure
which will significantly reduce line noise when used with light loads. This
driver has been designed to drive ±12mA at the designated threshold levels.
The ALVCHR162245 has “bus-hold” which retains the inputs’ last state
whenever the input bus goes to a high impedance. This prevents floating
inputs and eliminates the need for pull-up/down resistors.
1
DIR
1
A1
1
A2
1
A3
1
A4
1
A5
1
A6
1
A7
1
A8
1
B8
1
B7
1
B6
1
B5
1
B4
1
B3
1
B2
1
B1
1
OE
2
DIR
2
A1
2
A2
2
A3
2
A4
2
A5
2
A6
2
A7
2
A8
2
B8
2
B7
2
B6
2
B5
2
B4
2
B3
2
B2
2
B1
2
OE
1
47
46
44
43
41
40
38
37
12
11
9
8
6
5
3
2
48
24
36
35
33
32
30
29
27
26
23
22
20
19
17
16
14
13
25
