4
All Intersil semiconductor products are manufactured, assembled and tested under
ISO9000
quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time with-
out notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site
http://www.intersil.com
Die Characteristics
DIE DIMENSIONS:
69 mils x 92 mils x 19 mils
±
1 mil
1750 x 2330 x 355
μ
m
±
25.4
μ
m
INTERFACE MATERIALS:
Glassivation:
Type: Nitride
Thickness: 4k
±
0.5k
Top Metallization:
Type: Metal 1: AICu(2%)/TiW
Type: Metal 2: AICu(2%)
Thickness: Metal 1: 8k
±
0.4k
Thickness: Metal 2: 16k
±
0.8k
Substrate:
UHF-1X, Bonded Wafer, DI
Backside Finish:
Silicon
ASSEMBLY RELATED INFORMATION:
Substrate Potential
(Powered Up)
:
Floating
ADDITIONAL INFORMATION:
Worst Case Current Density:
< 2 x 10
5
A/cm
2
Transistor Count:
150

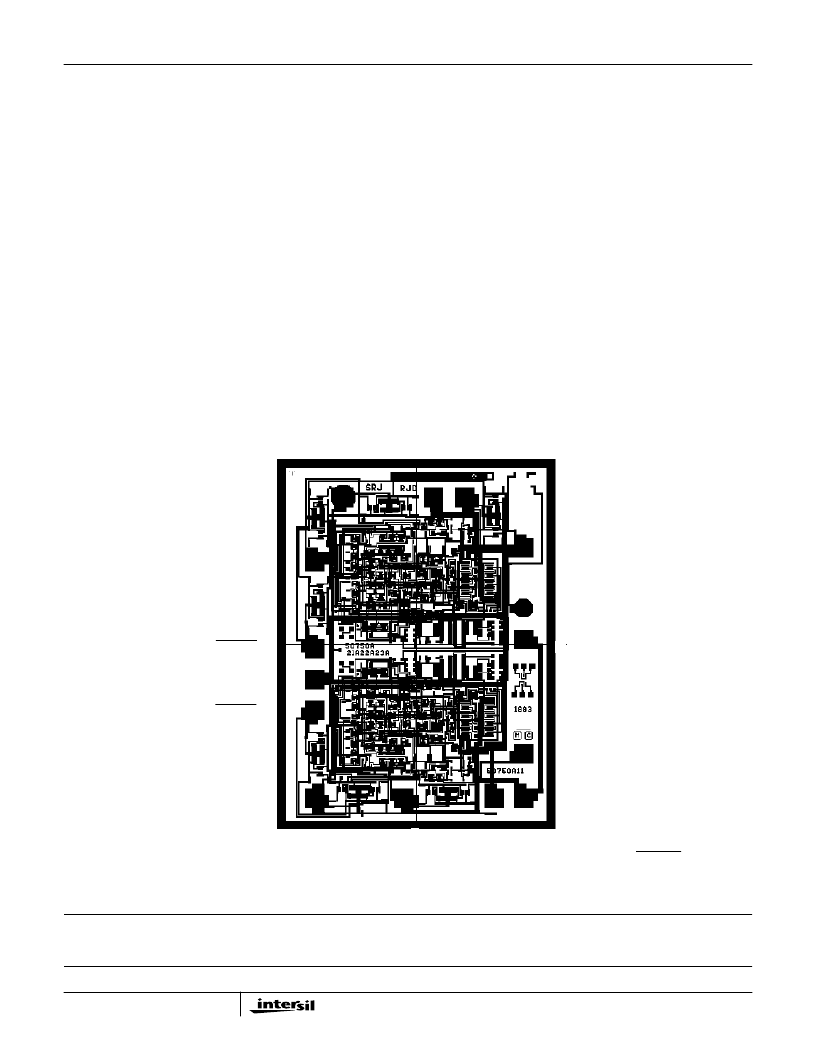

Metallization Mask Layout
HS-1245RH
NOTE: This is an optional GND pad. Users may set a GND reference, via this pad, to ensure the TTL compatibility of the DISABLE inputs when
using asymmetrical supplies (e.g., V+ = 10V, V- = 0V). See the “Application Information” section for details.
V-
-IN2
OUT2
+IN1
-IN1
V+
V
L
+IN2
OUT1
NC
NC
GND (NOTE)
DISABLE1
DISABLE2
V-
V-
HS-1245RH
