357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
ECL
HS-2830 Series
Description
The
HS-2830 Series
of quartz crystal oscillators provide F 100K series compatible signals in industry
standard four-pin DIP hermetic packages. Systems designers may now specify space-saving, cost-
effective packaged ECL oscillators to meet their timing requirements.
Features
Wide frequency range–15.0MHz to 250.0MHz
User specified tolerance available
Will withstand vapor phase temperatures of 253°C
for 4 minutes maximum
Space-saving alternative to discrete component
oscillators
High shock resistance, to 3000g
Metal lid electrically connected to ground to
reduce EMI
Low Jitter
F 100K series compatible output on Pin 8,
complement on Pin 1
High Q Crystal actively tuned oscillator circuit
Power supply decoupling internal
No internal PLL avoids cascading PLL problems
High frequencies due to proprietary design
Gold plated leads - Solder dipped leads available
upon request
RoHS Compliant, Lead Free Construction
(unless solder dipped leads are supplied)
Electrical Connection
Pin Connection
1 Output Complement
7 V
EE
-4.5V
8 Output
14 V
CC
Ground

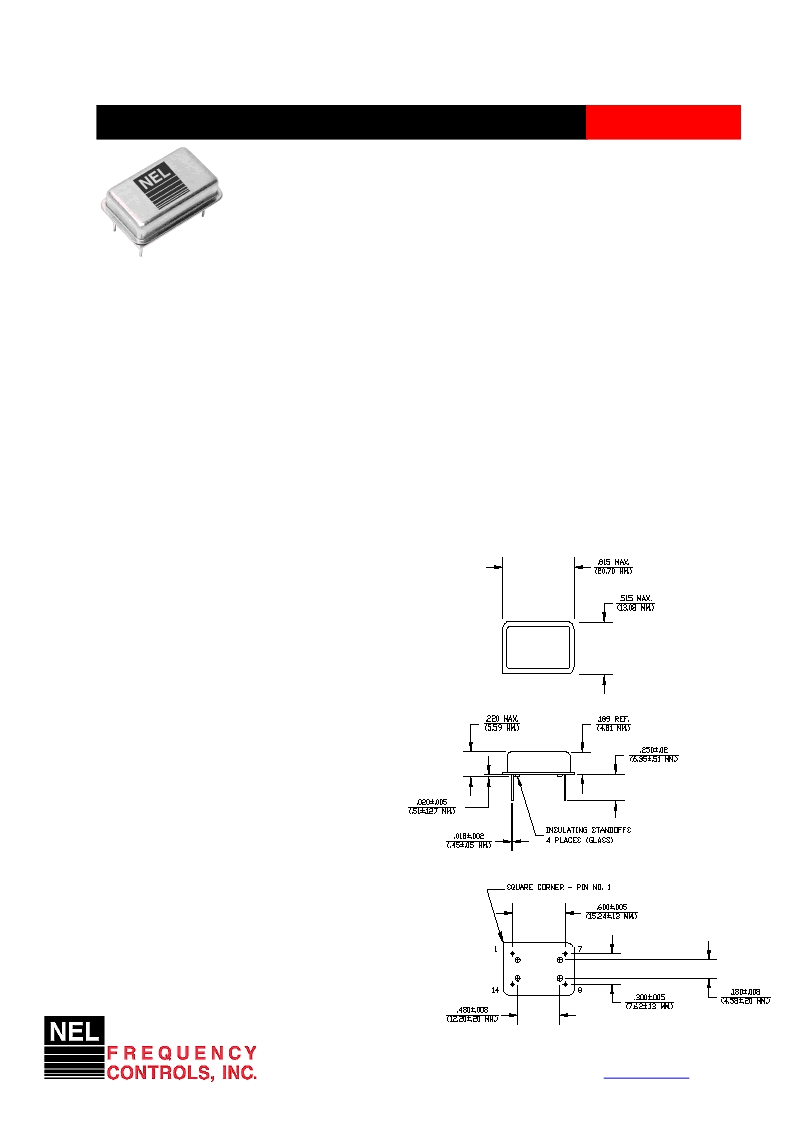

Dimensions in inches and (MM)
CRYSTAL CLOCK OSCILLATORS
Data Sheet 0012L
Rev. G
