Functional Description
Transmitter Section
Design
The transmitter section, Figure 3,
uses a Multiple Quantum Well
laser as its optical source. The
packaging of this laser is designed
for repeatable coupling into single
mode fiber while maintaining
compliancy with IEC 825 Class 1
and CDRH Class I eye safety
requirements. The optical output
is controlled by a custom IC which
detects the laser output via the
monitor photodiode. This IC
provides both dc and ac current
drive to the laser to ensure correct
modulation, eye diagram and
extinction ratio over temperature,
supply voltage and life.
PCB mounting
The HFCT-5215M has two
solderable mounting studs. These
studs are not electrically
connected. The transceiver is
designed for common production
processes. It may be wave
soldered and aqueous washed
providing the process plug is in
place.
Each process plug can only be
used once during processing,
although with subsequent use, it
can be used as a dust cover.

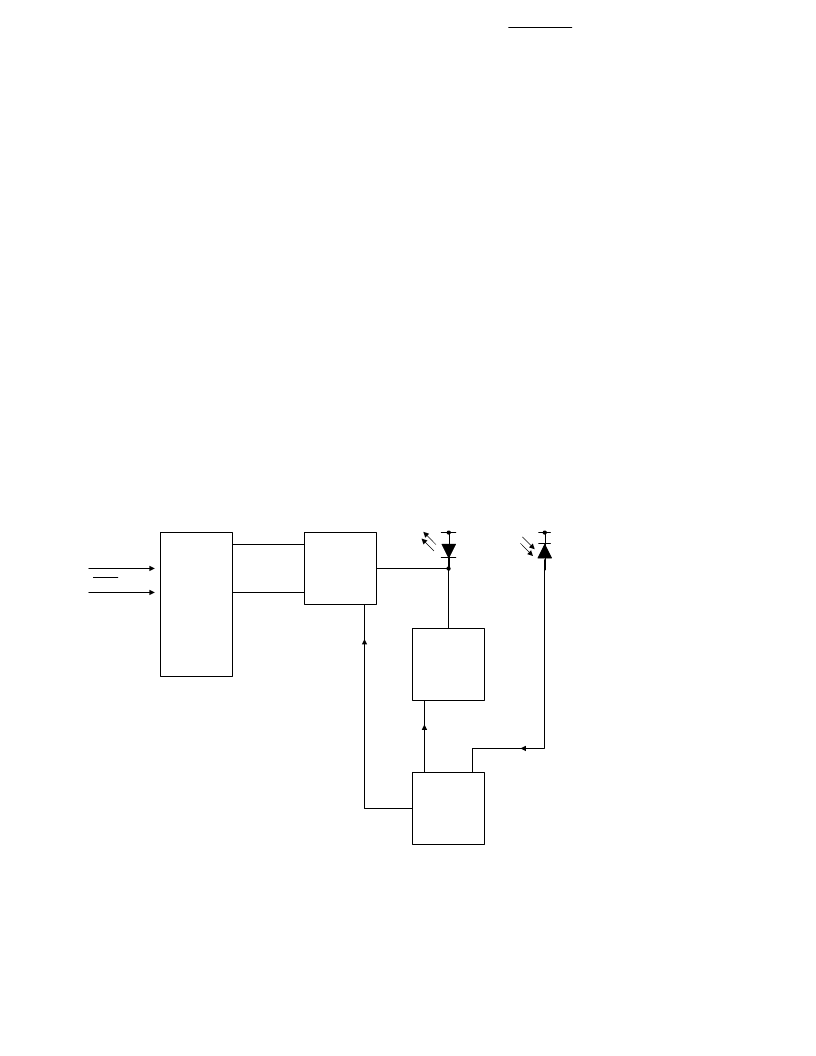

Figure 3 - Simplified Transmitter Schematic
DATA
DATA
PECL
INPUT
LASER
MODULATOR
LASER
LASER BIAS
DRIVER
LASER BIAS
CONTROL
PHOTODIODE
(rear facet monitor)
