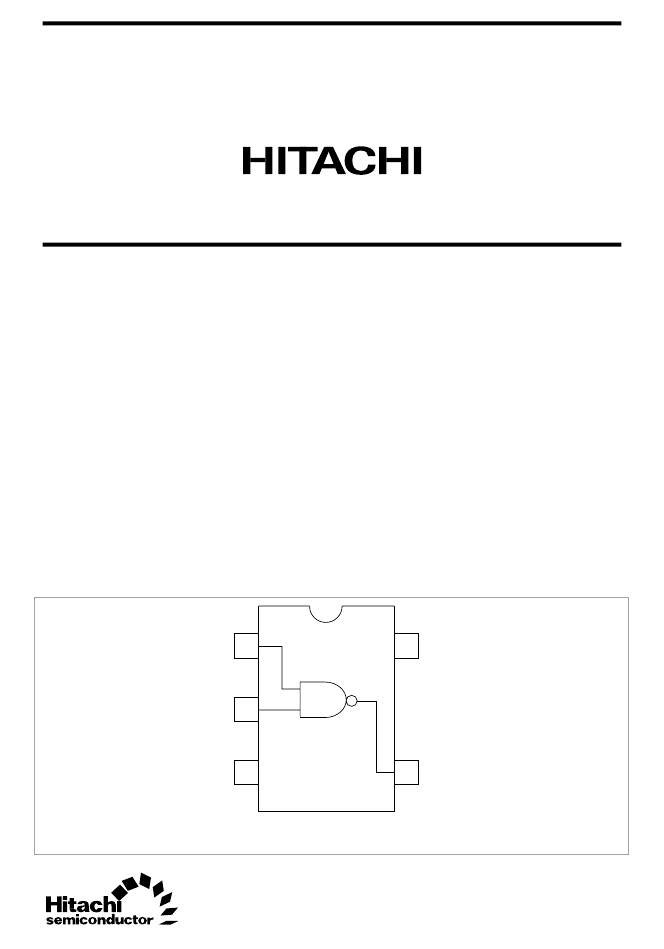

HD74UH00
2-input NAND Gate
ADE-205-014A(Z)
2nd Edition
August 1993
Description
The HD74UH00 is high speed CMOS two input NAND gate using silicon gate CMOS process. With
CMOS low power dissipation, it provides high speed equivalent to LS-TTL series. The internal circuit of
three stages construction with buffer provides wide noise margin and stable output.
Features
Encapsulated in very small 5pins package of 2.9
×
1.6
×
1.1 mm, the efficiency to mount on substrate is
significantly improved.
The basic gate function is lined up as hitachi uni logic series.
Supplied on embos taping for high speed automatic mounting.
Electrical characteristics equivalent to the HD74HC00
Supply voltage range: 2 to 6 V
Operating temperature range: –40 to +85°C
| I
OH
| = I
OL
= 2 mA (min)
Pin Arrangement
(Top view)
5
4
V
CC
1
2
3
IN B
IN A
GND
OUT X
