4
■

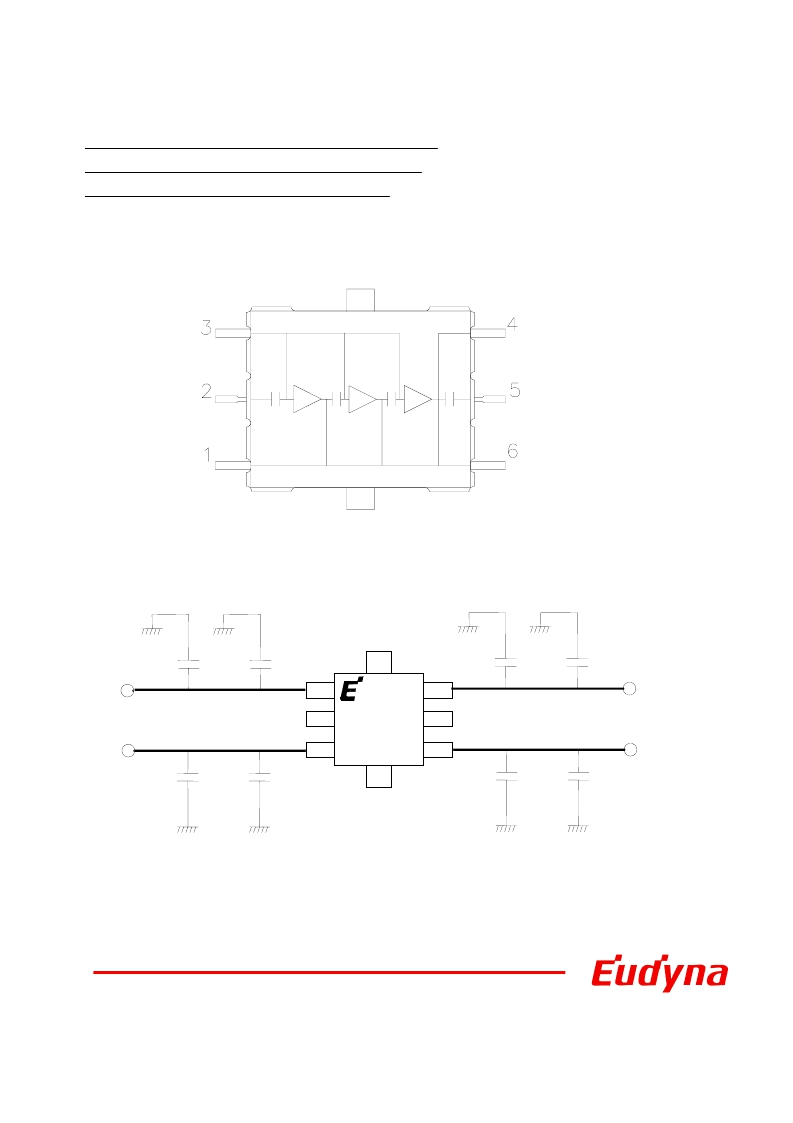

Block diagram
PIN ASSIGMENT
1 : VDD
2 : RF in
3 : VGG
4 : VDD
5 : RF out
6 : VDD
■
Recommended Bias Circuit
1
2
3
6
5
4
RF in
RF out
GND
GND
1000pF
1000pF
1000pF
1000pF
0.1uF
0.1uF
0.1uF
0.1uF
VDD
VGG
VDD
VDD
Note 1: The capacitors are recommended on the bias supply line, close to the package,
in order to prevent video oscillations which could damage the module.
Note 2: Three pins named VDD are internally connected.
FMM5051VU
Ku band Power Amplifier MMIC
