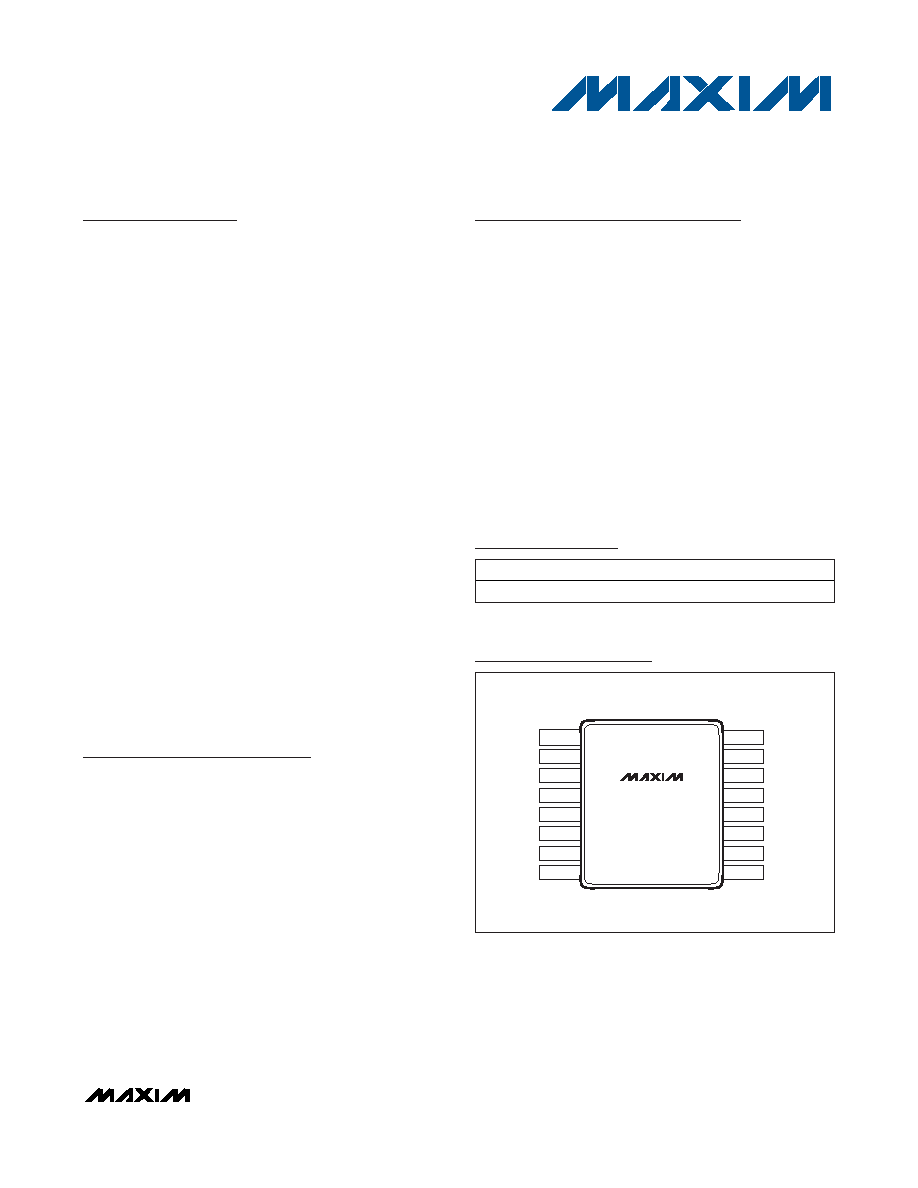

General Description
The DS8102 is a stand-alone, dual-channel, delta-
sigma modulator that converts measurements from two
differential analog input pairs into a Manchester-encod-
ed output bit stream that can be processed by a com-
panion microcontroller such as the MAXQ3108. One
channel operates at a fixed 1x gain, while the other
operates at a pin-selectable gain of 1x, 4x, 16x, or 32x.
The DS8102 includes an internal power-supply monitor,
on-board voltage reference, and low-power oscillator to
reduce the number of external components required for
data acquisition.
The Manchester-encoded output from the DS8102
combines pulse-density-modulated measurement val-
ues from both differential input channels with a syn-
chronization bit stream and is transmitted over a single
pin. This transmission scheme is ideal for split voltage
domain applications where the DS8102 and other “hot”-
side components must be electrically isolated from
“cold” low-voltage components such as a companion
microcontroller. In this type of application, the DS8102
can be capacitively coupled to a companion microcon-
troller with only two connection points required
(MNOUT and DGND).
The MAXQ3108 dual-core microcontroller, which
includes specialized Manchester bit-stream decoding
inputs and sinc3 filters, is specifically designed to act
as a companion microcontroller for up to three DS8102
devices. This configuration, which supports up to six
differential analog input channels, is well suited for
three-phase electricity-metering applications.
Applications
Single-Phase Electricity Metering
Three-Phase Electricity Metering
Power-Line Conditioning
Electrochemical and Optical Sensors
Industrial Control
Data-Acquisition Systems and Data Loggers
Features
Dual Delta-Sigma 2nd-Order Modulators
Channel 0: Pin-Selectable Gain of 1x, 4x, 16x,
or 32x
Channel 1: Fixed Gain of 1x
Selectable Internal or External Voltage Reference
Manchester-Encoded Bit Stream Output
Includes Synchronization Bits to Allow Clock
Recovery
Single-Pin Transmission Scheme Simplifies
Electrical Isolation Using Capacitive Coupling
Selectable Internal or External Clock Source
Integrated Low-Power 8MHz Oscillator
Operating Mode
Active Mode (8MHz, VDD = 3.6V): 3.5mA
DS8102
Dual Delta-Sigma Modulator and Encoder
________________________________________________________________
Maxim Integrated Products
1
TOP VIEW
TSSOP
13
4
MNOUT
AN1-
14
3
RST
VREF
15
2
APDREF
AGND
16
1VDD
DGND
10
7
G0
AN0+
11
6
G1
AN0-
9
8
CLKSEL
VDD
12
5
CLKIO
AN1+
DS8102
+
Pin Configuration
Ordering Information
Rev 1; 2/09
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
+
Denotes a lead(Pb)-free/RoHS-compliant package.
PART
TEMP RANGE
PIN-PACKAGE
DS8102+
-40
°C to +85°C
16 TSSOP
Typical Operating Circuit appears at end of data sheet.
MAXQ is a registered trademark of Maxim Integrated Products, Inc.
