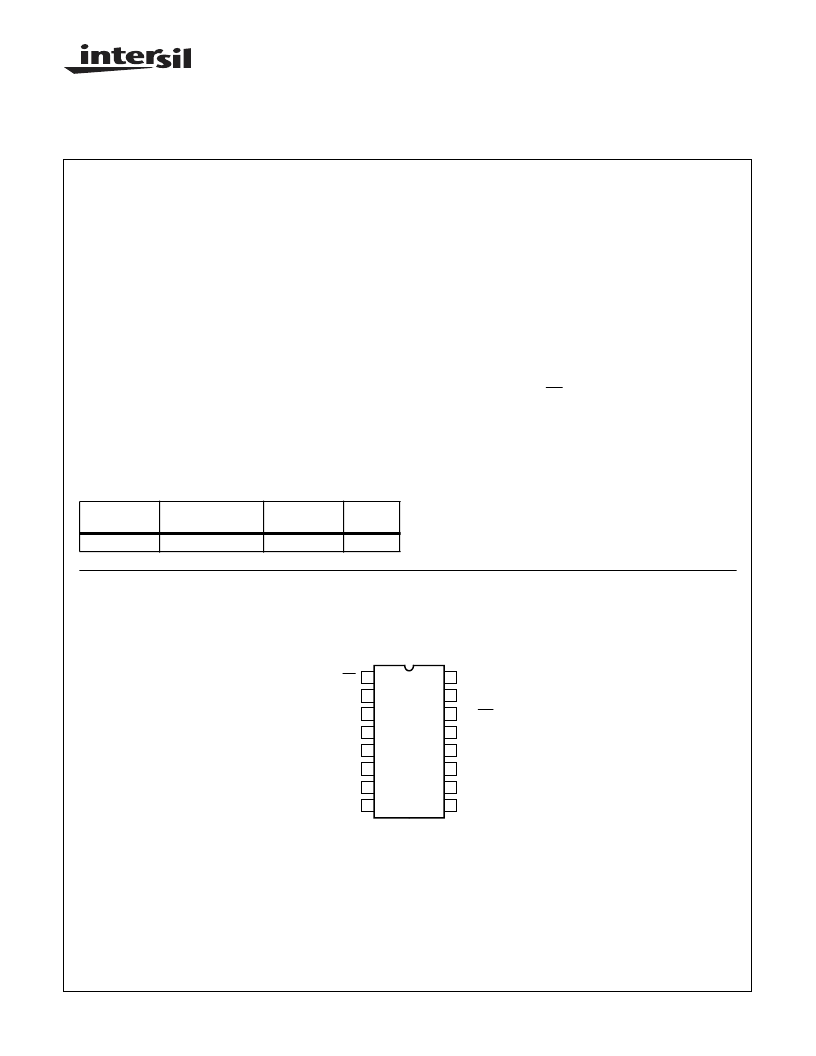

6-5
March 1997
CDP1821C/3
High-Reliability CMOS
1024-Word x 1-Bit Static RAM
Features
Static CMOS Silicon-On-Sapphire Circuitry CD4000-
Series Compatible
Compatible with CDP1800-Series Microprocessors at
Maximum Speed
Fast Access Time. . . . . . . . . . . 100ns Typ. at V
DD
= 5V
Single Voltage Supply
No Precharge or External Clocks Required
Low Quiescent and Operating Power
Separate Data Inputs and Outputs
High Noise Immunity . . . . . . . . . . . . . . . . . . 30% of V
DD
Memory Retention for Standby Battery Voltage Down
to 2V at +25
o
C
Latch-Up-Free Transient-Radiation Tolerance
Description
The CDP1821C/3 is a 1024-word x 1-bit CMOS silicon-on-sap-
phire (SOS), fully static, random-access memory designed for
use in CDP1800 microprocessor systems. This device has a
recommended operating voltage range of 4V to 6.5V.
The output state of the CDP1821C/3 is a function of the
input address and chip-select states only. Valid data will
appear at the output in one access time following the latest
address change to a selected chip. After valid data appears,
the address may be changed immediately. It is not neces-
sary to clock the chip-select input or any other input terminal
for fully static operation; therefore the chip-select input may
be used as an additional address input. When the device is
in an unselected state (CS = 1), the internal write circuitry
and output sense amplifier are disabled. This feature allows
the three-state data outputs from many arrays to be OR-tied
to a common bus for easy memory expansion.
Pinout
CDP1821C/3
(SBDIP)
TOP VIEW
Ordering Information
PACKAGE
TEMP. RANGE
-55
o
C to +125
o
C
PART
NUMBER
PKG. NO.
SBDIP
CDP1821CD3
D16.3
14
15
16
9
13
12
11
10
1
2
3
4
5
7
6
8
CS
A0
A1
A2
A3
A4
V
SS
DO
V
DD
RD/WR
A9
A8
A7
A6
A5
DI
File Number
2983.1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
http://www.intersil.com or 407-727-9207
|
Copyright
Intersil Corporation 1999
