1996 May 24
2
Philips Semiconductors
Product specification
Fast high-voltage soft-recovery
controlled avalanche rectifiers
BY8000 series
FEATURES
Glass passivated
High maximum operating
temperature
Low leakage current
Excellent stability
Guaranteed avalanche energy
absorption capability
Soft-recovery switching
characteristics
Compact construction.
APPLICATIONS
For colour television and monitors
up to 25 kHz
High-voltage applications for:
– Multipliers
– Layer-wound diode-split-
transformers where controlled
avalanche is required.
DESCRIPTION
Rugged glass package, using a high
temperature alloyed construction.
This package is hermetically sealed
and fatigue free as coefficients of
expansion of all used parts are
matched.
The package is designed to be used
in an insulating medium such as
resin, oil or SF6 gas.

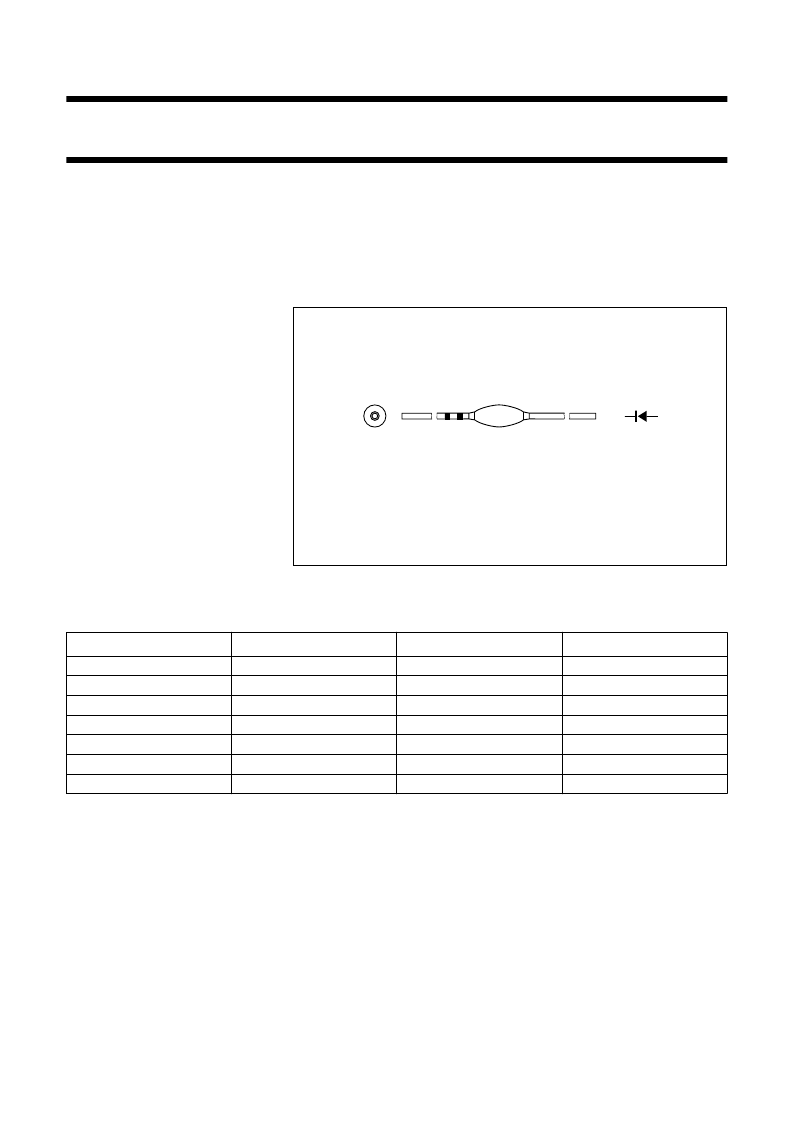

Fig.1 Simplified outline (SOD61) and symbol.
handbook, halfpage
MAM163
a
MARKING
Cathode band colour codes
TYPE NUMBER
PACKAGE CODE
INNER BAND
OUTER BAND
BY8004
BY8006
BY8008
BY8010
BY8012
BY8014
BY8016
SOD61AC
SOD61AD
SOD61AE
SOD61AF
SOD61AH
SOD61AI
SOD61AJ
violet
violet
violet
violet
violet
violet
violet
black
green
red
violet
orange
lilac
grey
