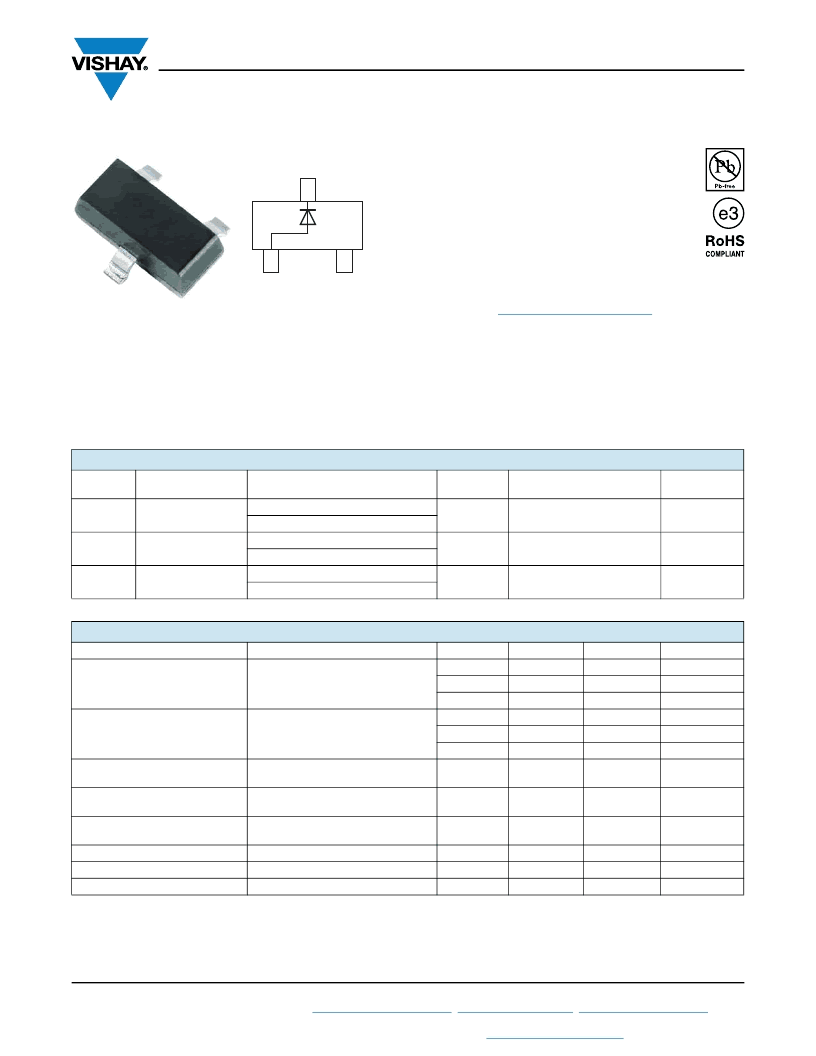

BAS19, BAS20, BAS21
Vishay Semiconductors
www.vishay.com
Rev. 1.8, 15-May-13
For technical questions within your region:
DiodesAmericas@vishay.com
,
DiodesAsia@vishay.com
,
DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc91000
1
Document Number: 85540
Small Signal Switching Diodes, High Voltage
MECHANICAL DATA
Case:
SOT-23
Weight:
approx. 8.8 mg
Packaging codes/options:
18/10K per 13” reel (8 mm tape), 10K/box
08/3K per 7” reel (8 mm tape), 15K/box
FEATURES
Silicon epitaxial planar diode
Fast switching diode in case SOT-23, especially
suited for automatic insertion.
AEC-Q101 qualified
Base P/N-E3 - RoHS-compliant, commercial
grade
Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
Material categorization: For definitions of compliance
please see
www.vishay.com/doc99912
Notes
(1)
Measured under pulse conditions; pulse time = t
p
0.3 ms
(2)
Device on fiberglass substrate, see layout on next page
1
2
3
PARTS TABLE
PART
TYPE
DIFFERENTIATION
ORDERING CODE
TYPE
MARKING
INTERNAL
CONSTRUCTION
REMARKS
BAS19
V
R
= 100 V
BAS19-E3-08 or BAS19-E3-18
BAS19-HE3-08 or BAS19-HE3-18
BAS20-E3-08 or BAS20-E3-18
BAS20-HE3-08 or BAS20-HE3-18
BAS21-E3-08 or BAS21-E3-18
BAS21-HE3-08 or BAS21-HE3-18
A8
Single diode
Tape and reel
BAS20
V
R
= 150 V
A81
Single diode
Tape and reel
BAS21
V
R
= 200 V
A82
Single diode
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
BAS19
BAS20
BAS21
BAS19
BAS20
BAS21
SYMBOL
V
R
V
R
V
R
V
RRM
V
RRM
V
RRM
VALUE
100
150
200
120
200
250
UNIT
V
V
V
V
V
V
Continuous recerse voltage
Repetitive peak reverse voltage
Non repetitive peak forward
current
Non repetitive peak forward
surge current
Maximum average forward
rectified current
(1)
DC forward current
(2)
Repetitive peak forward current
Power dissipation
(2)
t = 1 μs
I
FSM
2.5
A
t = 1 s
I
FSM
0.5
A
(av. over any 20 ms period)
I
F(AV)
200
mA
I
F
200
625
250
mA
mA
mW
I
FRM
P
tot
