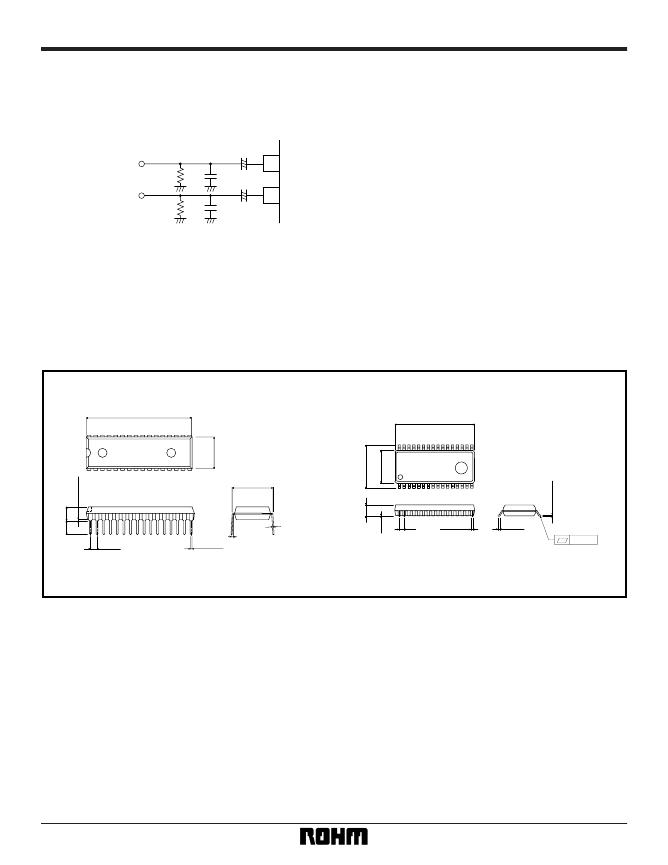

Multimedia ICs
BA7726AS / BA7726AFS
Operation notes
(1) LINE OUT (pins 1 and 2) signal processing
Be sure to attach a capacitor for phase correction to
the LINE OUT pins.
1
2
+
+
4700p
4700p
LINE OUT R
LINE OUT L
Fig. 9
(2) Setting the loop gain
Set the LPF constant and pin 12 control voltage so
that the loop gain (1st echo wave / 2nd echo wave)
does not exceed 1. Be particularly careful of peak-
ing near the LPF cutoff point.
(3) ALC function and microphone amplifier input
detection function
Refer to items 7 and 8 in “Circuit description.” When
these functions are not used, be sure to ground pins
27 and 28 (the ALC function) and pins 29 and 30
(microphone amplifier input detection function).
External dimensions (Units: mm)
4
±
0
8
±
3
±
32
1
16
17
0.5
±
0.1
0.3
±
0.1
28.0
±
0.3
0
°
~ 15
°
10.16
1.778
SDIP32
SSOP-A32
BA7726AFS
BA7726AS
0.15
0
±
0.3Min.
7
±
5
±
1
±
0
1
32
0.36
±
0.1
16
17
13.6
±
0.2
0.8
