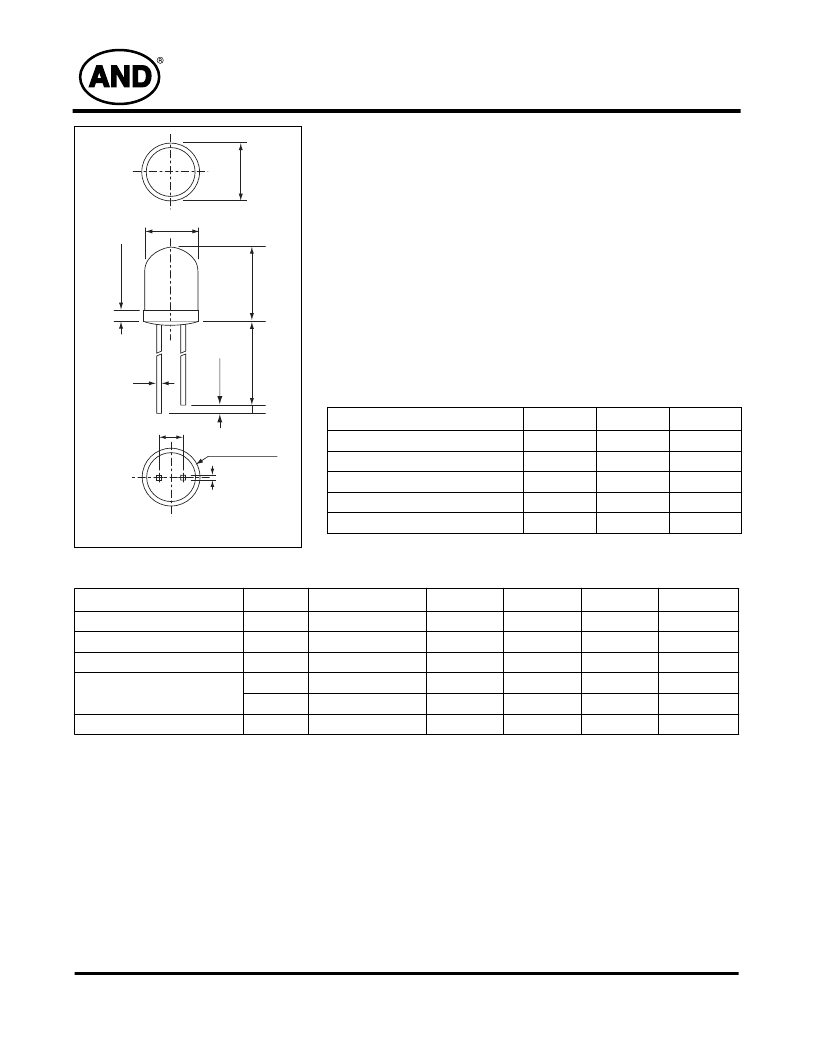

AND190HW
Ultra Bright LED Lamps
Weight: 1.0g
Unit: mm
2
1
1
10.0±0.2
2
1
1. Anode
2. Cathode
1 2
Cathode Index
0
2.54
0.5
AND190HW
InGaN High Brightness White Light Emission
T-3 Package (10 mm)
Features
New emission material (InGaN) white LED
All plastic mold type, clear colorless lens
Low drive current, (forward current = 1 to 20 mA)
Excellent On-Off contrast ratio
Fast response time, capable of pulse operation
High power luminous intensity
Suitable for Outdoor Message Signboards, Automotive use.
Maximum Ratings (T
a
= 25°C)
Characteristics
Symbol
Rating
Unit
Forward Current
I
F
30
mA
Reverse Voltage
V
R
5
V
Power Dissipation
P
D
108
mW
Operating Temperature Range
T
Opr
-40 to 85
°C
Storage Temperature Range
T
Stg
-40 to 85
°C
Precaution
Please be careful of the following:
1. Soldering temperature: 260°C max
Soldering time: 5 sec. max
Soldering portion of lead: up to 1.6 mm from the body of the device
2. The lead can be formed up to 5 mm from the body of the device without forming stress.
Soldering should be performed after the lead forming.
3. Absolute secure counter measures against static electricity and surge should be taken when handling these
products. It is recommended to use wrist band or antistatic gloves when handling these LEDs.
Electro-Optical Characteristics (T
a
= 25°C)
Characteristics
Symbol
Test Condition
Minimum
Typical
Maximum
Unit
Forward Voltage
V
F
I
F
= 20 mA
–
3.7
4.3
V
Reverse Current
I
R
V
R
= 5 V
–
–
10
μA
Luminous Intensity
I
V
I
F
= 20 mA
3,300
6,000
–
mcd
Chromaticity Coordinates
x
I
F
= 10 mA
–
0.33
–
y
I
F
= 10 mA
–
0.34
–
Full Viewing Angle
θ
I
V
= 1/2 Peak
–
40
–
degree
Product specifications contained herein may be changed without prior notice.
It is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this product.
