8
;;;;;;
DIMENSIONS IN MILLIMETERS (INCHES)
NOTES:
1. THIS FIGURE DESCRIBES THE RECOMMENDED CIRCUIT BOARD LAYOUT FOR THE MT-RJ TRANSCEIVER PLACED
AT .550 SPACING.
2. THE HATCHED AREAS ARE KEEP-OUT AREAS RESERVED FOR HOUSING STANDOFFS. NO METAL TRACES OR
GROUND CONNECTION IN KEEP-OUT AREAS.
3. 10 PIN MODULE REQUIRES ONLY 16 PCB HOLES, INCLUDING 4 PACKAGE GROUNDING TAB HOLES CONNECTED
TO SIGNAL GROUND.
4. THE SOLDER POSTS SHOULD BE SOLDERED TO CHASSIS GROUND FOR MECHANICAL INTEGRITY AND TO
ENSURE FOOTPRINT COMPATIBILITY WITH OTHER SFF TRANSCEIVERS.
Spacing
Of
Front
Housing
Leads
Holes
Holes For
Housing
Leads
13.34
(0.525)
KEEP OUT AREA
FOR PORT PLUG
7.59
(0.299)
3
(0.118)
3
(0.118)
6
(0.236)
4.57
(0.18)
17.78
(0.7)
27
(1.063)
1.778
(0.07)
7.112
(0.28)
0.81 ±0.1
(0.032 ±0.004)
3.08
(0.121)
2.29
(0.09)
7.11
(0.28)
9.59
(0.378)
3.08
(0.121)
1.4 ±0.1
(0.055 ±0.004)
1.4 ±0.1
(0.055 ±0.004)
1.4 ±0.1
(0.055 ±0.004)
10.16
(0.4)
13.97
(0.55)
MIN.
3.56
(0.14)
7
(0.276)
10.8
(0.425)
2
(0.079)
Regulatory Compliance
These transceiver products are intended to enable
commercial system designers to develop equipment
that complies with the various international regulations
governing certification of Information Technology
Equipment. See the Regulatory Compliance Table for
details. Additional information is available from your
Avago Technologies sales representative.

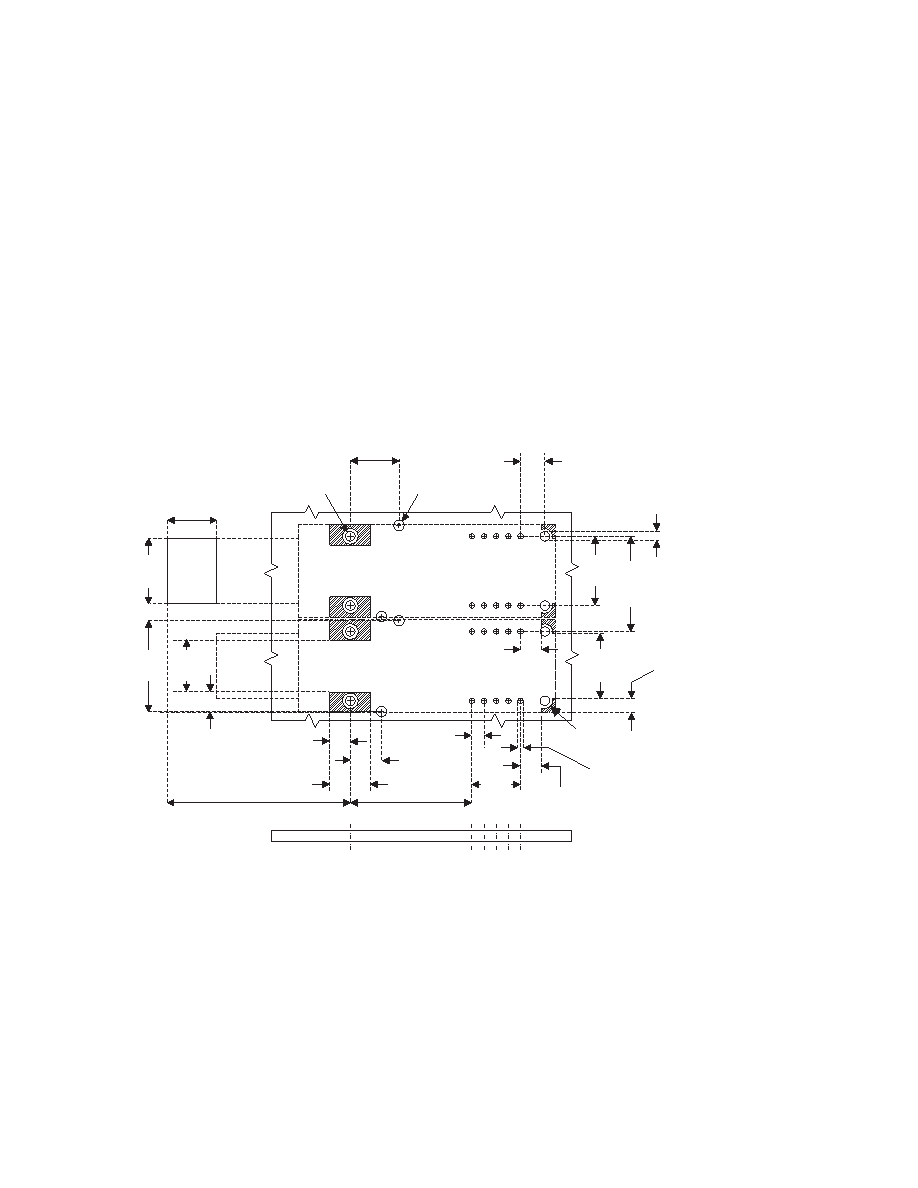

Figure 6. Recommended Board Layout Hole Pattern
Electrostatic Discharge (ESD)
There are two design cases in which immunity to ESD
damage is important.
The first case is during handling of the transceiver prior
to mounting it on the circuit board. It is important to
use normal ESD handling precautions for ESD sensitive
devices. These pre-cautions include using grounded
wrist straps, work benches, and floor mats in ESD
controlled areas.
The second case to consider is static discharges to the
exterior of the equipment chassis containing the
transceiver parts. To the extent that the MT-RJ
connector is exposed to the outside of the equipment
chassis it may be subject to whatever ESD system level
test criteria that the equipment is intended to meet.
