Table 10. Transceiver Digital Diagnostic Monitor (Real Time Sense) Characteristics
(TC = -10°C to 85°C, VccT, VccR = 3.3V ±10%)
Parameter
Symbol
Min.
Units
Notes
Transceiver Internal Temperature
TINT
±3.0
°C
Temperature is measured internal to the transceiver.
Accuracy
Valid from = -10°C to 85°C case temperature.
Transceiver Internal Supply
VINT
±0.1
V
Supply voltage is measured internal to the transceiver
Voltage Accuracy
and can, with less accuracy, be correlated to
voltage at the SFP Vcc pin. Valid over 3.3 V ± 10%.
Transmitter Laser DC Bias Current
IINT
±10
%
IINT is better than ±10% of the nominal value.
Accuracy
Transmitted Average Optical
PT
±3.0
dB
Coupled into 50/125 μm multi-mode fiber. Valid from
Output Power Accuracy
100 μW to 500 μW, avg.
Received Average Optical Input
PR
±3.0
dB
Coupled from 50/125 μm multi-mode fiber. Valid from
Power Accuracy
31 μW to 500 μW, avg.

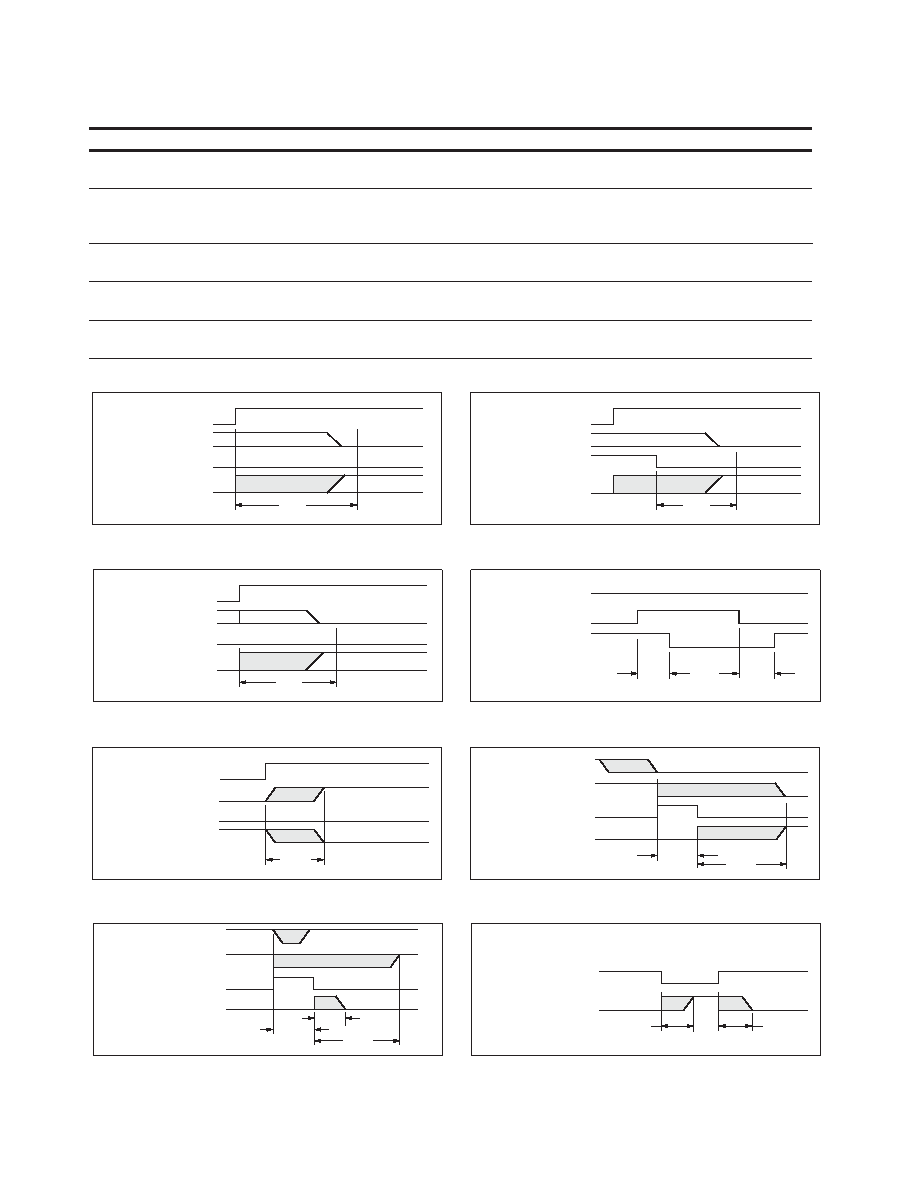

Figure 4. Transceiver timing diagrams (module installed except where noted).
7;B)$8/7
2&&85$1&(2))$8/7
WBIDXOW
7;B',6$%/(
75$160,77('6,*1$/
7;B)$8/7
2&&85$1&(2))$8/7
7;B',6$%/(
75$160,77('6,*1$/
WIDXOW7;)$8/7$66(57('7;6,*1$/1275(&29(5('
WUHVHW7;',6$%/($66(57('7+(11(*$7('7;6,*1$/5(&29(5('
WBUHVHW
WBLQLW
