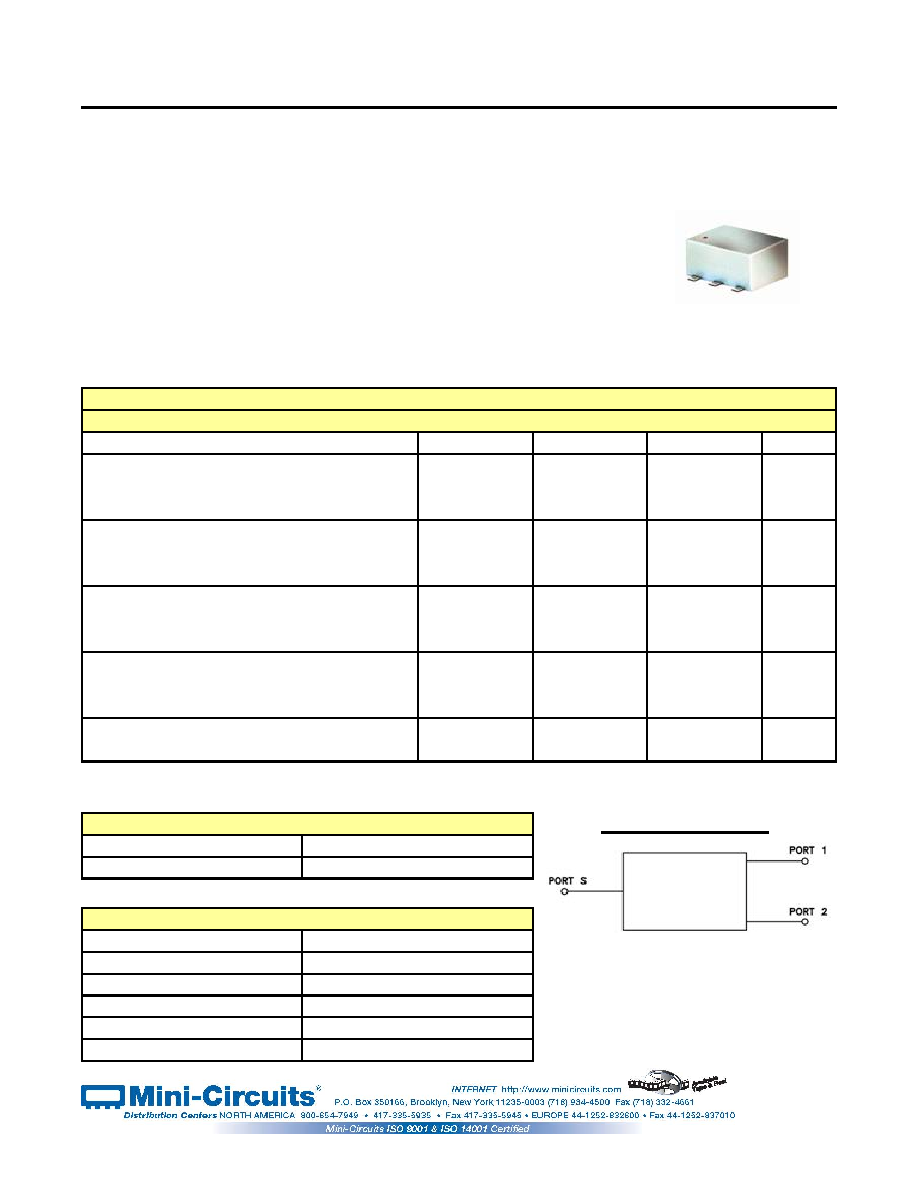

Power Splitter/Combiner
ADP-ED7887/1
Parameter
Min.
Typ.
Max.
Units
Frequency
1
1050
MHz
Isolation
1 - 10 MHz
27
dB
10 - 525 MHz
26
dB
525 - 1050 MHz
21
dB
Insertion Loss Above 3.0 dB
1 - 10 MHz
0.42
dB
10 - 525 MHz
0.27
dB
525 - 1050 MHz
0.61
dB
Phase Unbalance
1 - 10 MHz
0.020
deg.
10 - 525 MHz
0.180
deg.
525 - 1050 MHz
1.822
deg.
Amplitude Unbalance
1 - 10 MHz
0.015
dB
10 - 525 MHz
0.010
dB
525 - 1050 MHz
0.076
dB
VSWR
SUM Port
1.09
(:1)
OUT Ports
1.26
(:1)
Operating Temperature
Storage Temperature
SUM PORT
PORT 1
PORT 2
GND EXT
CASE GND
NOT USED
2
1
5
4
3
-40°C to 85°C
-55°C to 100°C
PIN CONNECTIONS
6
ELECTRICAL SPECIFICATIONS 75 @ +25°C
Note: Denotes 75 Ohm model, for coax connector models 75 Ohm BNC connectors are standard.
MAXIMUM RATINGS
Functional Diagram
Engineering Development Model
2 Way-0°
Important Note
This model has been designed, built and tested in our engineering
department. Performance data represents model capability.
At present it is a non-catalog model. On request, we can supply a
final specification sheet, part number and price/delivery information.
Please click "Back", and then click "Contact Us" for Applications support.
CASE STYLE : CD636
REV. X1
ADP-ED7887/1
060712
Page 1 of 1
