參數資料
| 型號： | 934054915115 |
| 廠商： | NXP SEMICONDUCTORS |
| 元件分類： | 二極管(射頻、小信號、開關、功率) |
| 英文描述： | 0.5 A, SILICON, SIGNAL DIODE, TO-236 |
| 封裝： | PLASTIC, SMD, SMT3, SC-59, MPAK-3 |
| 文件頁數： | 2/8頁 |
| 文件大小： | 46K |
| 代理商： | 934054915115 |
1998 Jul 28
2
Philips Semiconductors
Product specication
Schottky barrier diode
1PS59SB20
FEATURES
Ultra fast switching speed
Low forward voltage
Guard ring protected
Small SMD package.
APPLICATIONS
High-speed switching
Voltage clamping
Protection circuits.
DESCRIPTION
Planar Schottky barrier diode with an integrated guard ring for stress protection
in an SC-59 small SMD plastic package.
PINNING
PIN
DESCRIPTION
1
anode
2
not connected
3
cathode

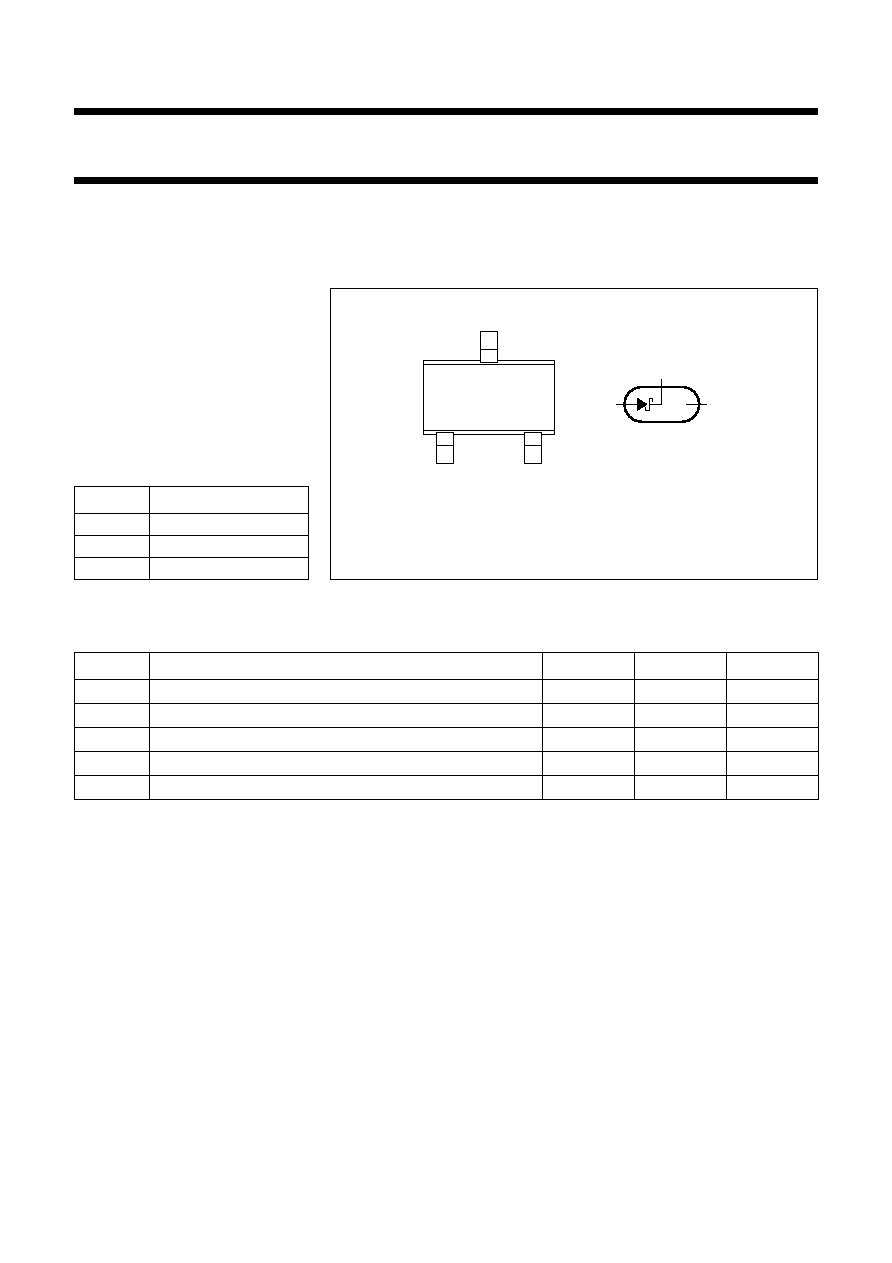

Fig.1 Simplified outline (SC-59) and symbol.
Marking code: 20.
dbook, halfpage
MSA314
Top view
2
1
3
3
12
n.c.
MLC357
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VR
continuous reverse voltage
40
V
IF
continuous forward current
500
mA
IFSM
non-repetitive peak forward current
2A
Tstg
storage temperature
65
+150
°C
Tj
junction temperature
125
°C
