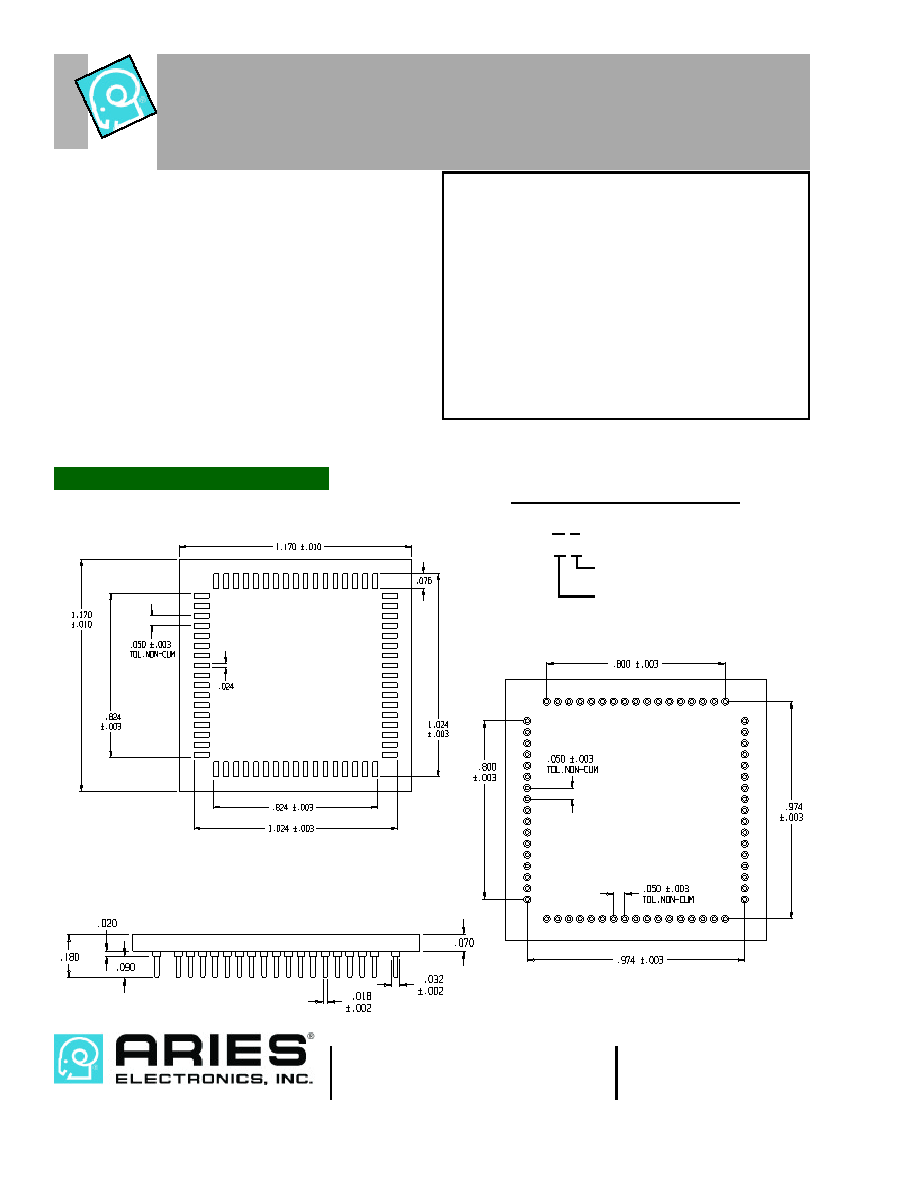

PLCC PIN 1 ROTATOR ADAPTERS
68 AND 44 PIN VERSIONS
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ALL DIMENSIONS: INCHES [MILLIMETERS]
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
18077
REV. B
FEATURES:
A cost effective means of repair without changing your
PCB layout.
Corrects pin 1 location error. Moves pin 1 from upper
left to upper middle position.
SPECIFICATIONS:
Board Material is .070 thick FR-4 with 1 oz. Copper
traces, both sides.
Pins are Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16085
Pin plating is 200 [5.08m] min. Tin per MIL-T-10727
Type 1 or Tin/Lead 90/10 MIL-P-81728 over 100
{2.54m] Nickel per QQ-N-290.
Operating temperature = 221F [105C]
MOUNTING CONSIDERATIONS:
Butt solder contacts as you would J Leads on STD
PLCC packages.
ORDERING INFORMATION
68-304119-X 0 - 68 PIN VERSION
44-301715-X 0 - 44 PIN VERSION
T = Tin Plating
1 = Short Adapter Pin
2 = Long Adapter Pin
NO
AV
AILABLE
AT
THIS
TIME
(shown)
