All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Model 4911A
Retractable Sheath Banana
Plug Patch Cord
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1094276
Page 1 of 2

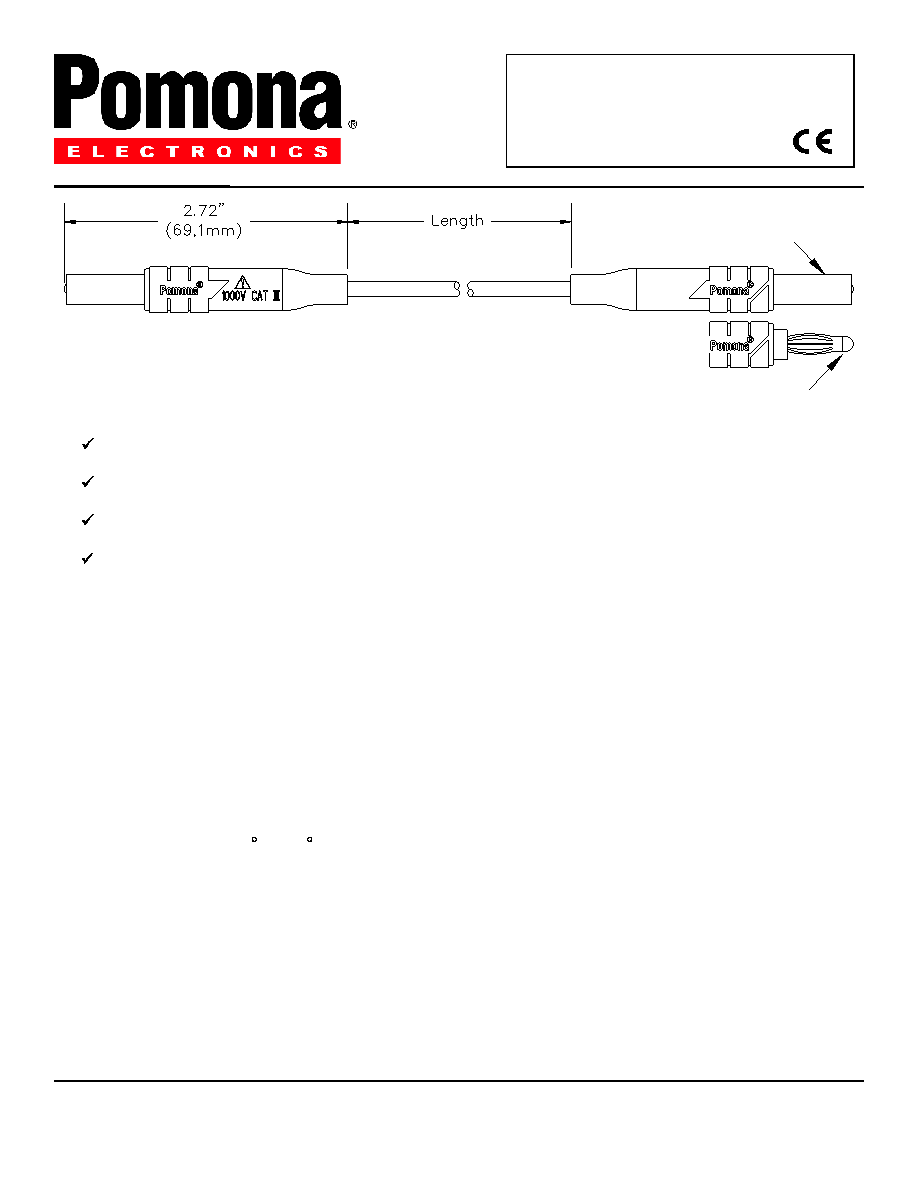

Retractable Sheath
Insulated Tip
FEATURES:
Retractable sheath end allows interfacing to either standard sheathed or non-sheath style banana 1.66” (4mm)
jacks.
Plug and housing are molded directly to the cable in an integral one piece design and the wire is double crimped
for a long lasting connection.
Multi-leaf banana spring material is Beryllium Copper, nickel plated for extended insertion life cycle and low
contact resistance.
Test leads can mate to a broad assortment of Pomona probes, alligators, spade lugs, etc.
MATERIALS:
Retractable Sheath Banana Plug:
Banana Plug Body: Nickel Plated Brass
Banana Spring: Nickel Plated Beryllium Copper
Compression Spring: Stainless Steel
Tip: Nylon, Color Matches Color of Wire
Insulation: Nylon Molded to the Plug and Wire. Color Matches Color of Wire.
Wire:
18 AWG, Stranding 65 x 36 t.c., PVC Insulated, .144 (3,66mm) O.D.
RATINGS:
Operating Voltage: 1000 Vrms IEC 1010-2-31, Category III
Current: 10 Amperes
Operating Temperature: +131 F (+55 C) Max.
ORDERING INFORMATION: Model 4911A-*Length-Color
Length = Standard Lengths are:
12” (30,48cm), 18” (45,72cm), 24” (60,96cm), 36” (91,44cm), 48” (121,92cm) & 60” (152,4cm).
Color = 0 (Black), 2 (Red)
Ordering Example: 4911A-12-2 (Patch Cord is 12” (30,48cm), Color is Red)
*
For custom lengths and colors, contact Technical Support at custom@pomonatest.com
