| 型號： | 45970-3111 |
| 廠商： | MOLEX INC |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | SEARAY Plug Asy #1 hgt w/ pegs 10X30 LF |
| 中文描述： | 300 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG |
| 文件頁數： | 2/2頁 |
| 文件大?。?/td> | 190K |
| 代理商： | 45970-3111 |
Americas Headquarters
Lisle, Illinois 60532 U.S.A.
1-800-78MOLEX
amerinfo@molex.com
Asia Pacific North Headquarters
Yamato, Kanagawa, Japan
81-462-65-2324
feninfo@molex.com
Asia Pacific South Headquarters
Jurong, Singapore
65-6268-6868
fesinfo@molex.com
European Headquarters
Munich, Germany
49-89-413092-0
eurinfo@molex.com
Corporate Headquarters
2222 Wellington Ct.
Lisle, IL 60532 U.S.A.
630-969-4550
Fax:630-969-1352
Visit our website at www.molex.com/product/searay.html
Order No. 987650-0863
Printed in USA/JI/2007.04
2007, Molex

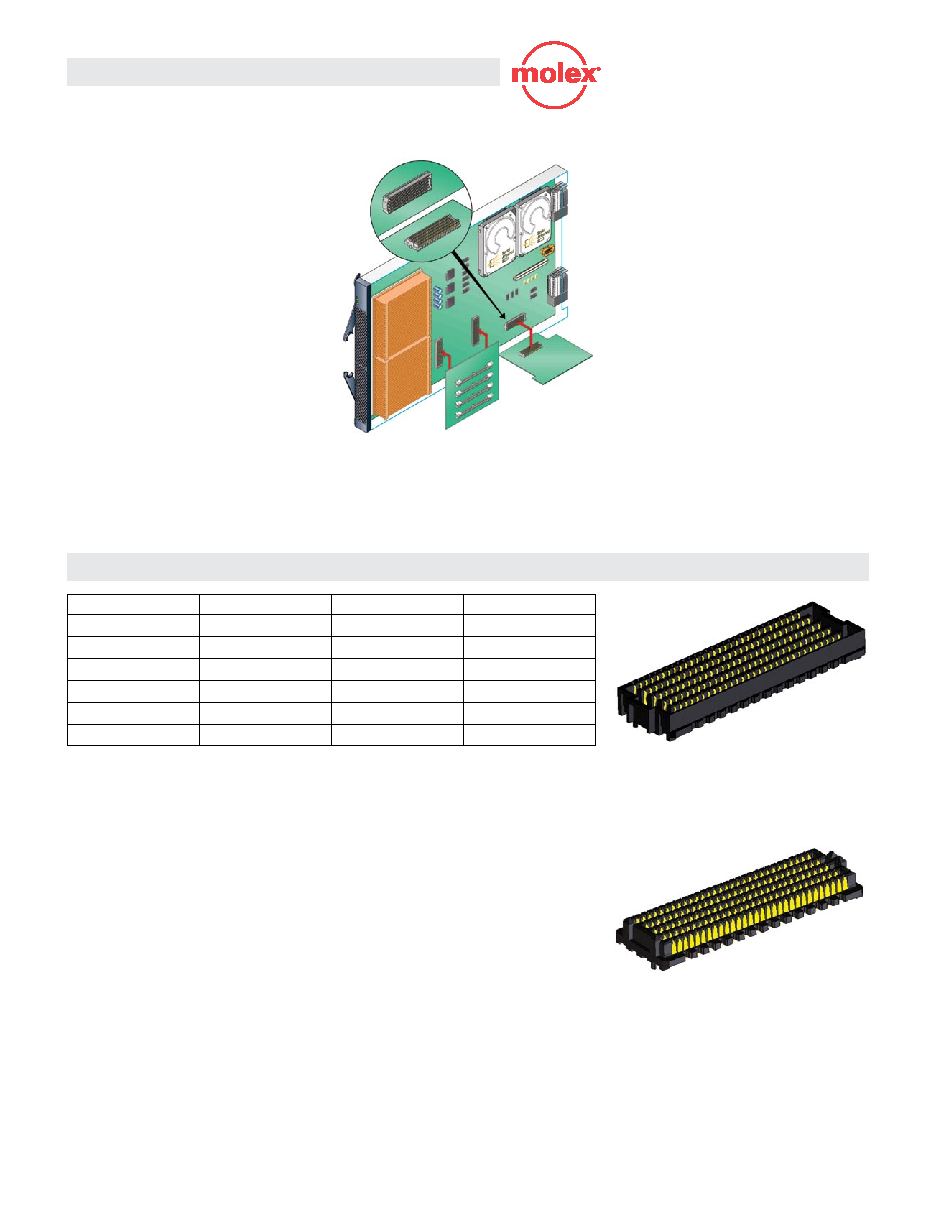

1.27 by 1.27mm
(.050 by .050”) Pitch
SEARAY* Connector
45970 Plug
45971 Receptacle
APPLICATIONS
ORDERING INFORMATION
n
High and Mid-Range Computers
- Servers
n
Medical
- Scanning equipment
n
Military
- Radar or topographical equipment
n
Networking and Telecommunications
- Network routers and switches
- Mobile base stations
Notes
1) Refer to the product sales drawing for mated stack-height options
2) Please contact inside sales for other circuit sizes and stack heights
3) Please contact inside sales for parts with Tin/Lead solder charges
*SEARAY is a trademark of Samtec, Inc.
SEARAY Receptacle
SEARAY Plug
Plug Order No.
Circuits
Stack Height
Receptacle Order No.
45970-9161
114
7.00mm (.276”)
45971-9161
45970-2311
200
10.00mm (.393”)
45971-2311
45970-3181
240
7.00mm (.276”)
45971-3181
45970-3213
300
8.00mm (.314”)
45971-3113
45970-3111
300
7.00mm (.276”)
45971-3113
45970-4311
400
11.00mm (.433)
45971-4411
