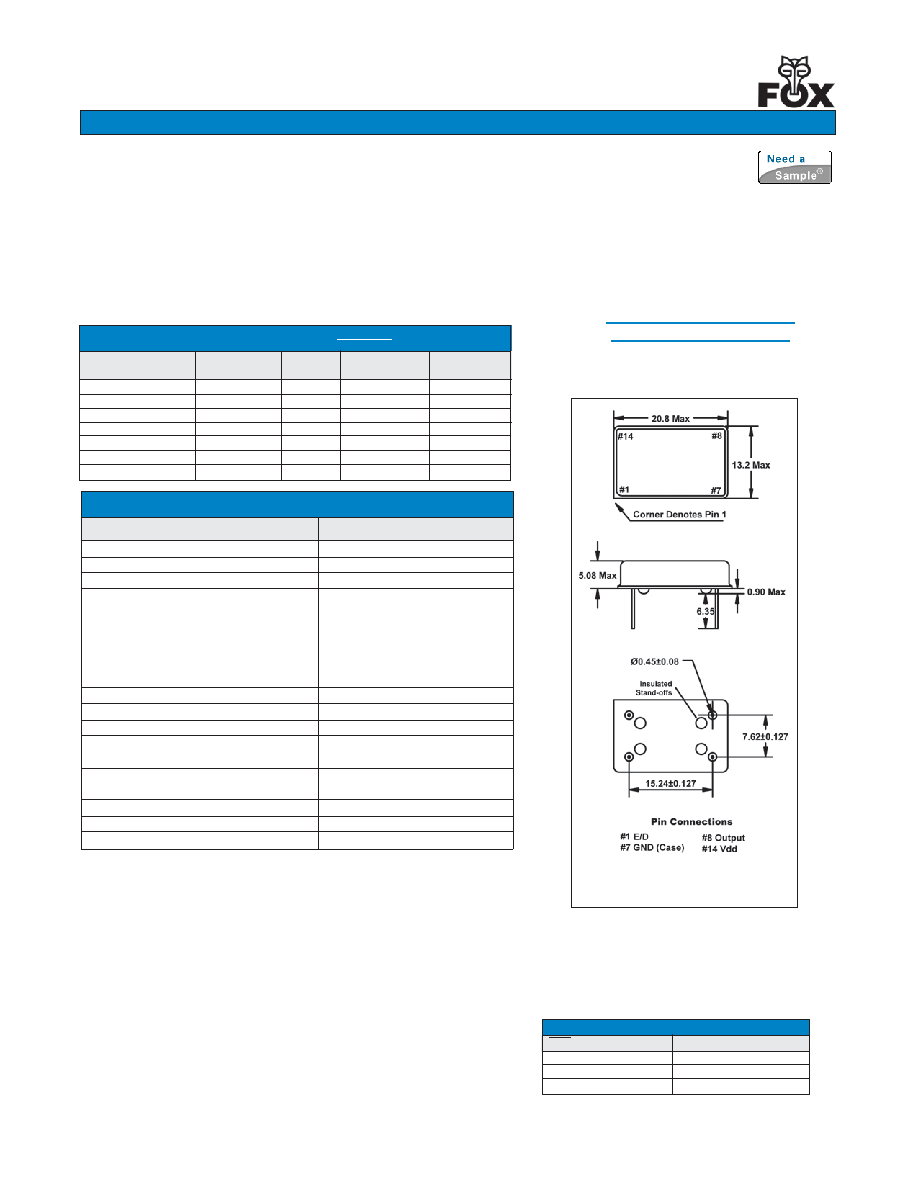

FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 http://www.foxonline.com
EMEA Tel/Fax: +44 .1767.312632 | Asia Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 | Taiwan Tel: +886.2.22073427 Fax +886.2.22073486
| Japan Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
2008 FOX ELECTRONICS | ISO9001:2000 Certified
FEATURES
3.3V Operation
HCMOS Output
Tri-State Enable/Disable
14-Pin DIP
All dimensions are in millimeters.
ACTIVE
High Z
EnAblE / DiSAblE FUncTiOn
INH (Pin 1)
OPEN 2
'1' Level Vih
≥ 2.2 V
'0' Level Vil
≤ 0.8 V
Frequency
Stability1
±100PPM
±50PPM
±25PPM
±20PPM
Operating
Temperature(C)
0 ~ +70
-40 ~ +85
0 ~ +70
-40 ~ +85
0 ~ +70
-40 ~ +85
0 ~ +70
Frequency
Range (MHz)
1.000~160.000
1.000~125.000
F5C-2E3LF
F5C-2E3RLF
F6C-2E3LF
F6C-2E3RLF
F7C-2E3LF
F7C-2E3RLF
F8C-2E3LF
Model Number
PART nUMbER SElEcTiOn Learn More - Internet Required
Part Number
148LF-Freq-xxxxx
355LF-Freq-xxxxx
328LF-Freq-xxxxx
356LF-Freq-xxxxx
329LF-Freq-xxxxx
358LF-Freq-xxxxx
567LF-Freq-xxxxx
learn more about:
internet required
OPTiOnS
8-Pin DIP Available (H5C-2E3LF)
1 Inclusive of 25C tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration.
2 An internal pullup resistor from pin 1 to VDD allows active output if pin 1 is left open.
All specifications subject to change without notice.
1.000 ~ 160.000 MHz
-55C ~ +125C
3.3V ± 10%
15mA
20mA
40mA
45mA
60mA
40% ~ 60%
10 nS
10% Vdd
90% Vdd Min
8mA Min
-8mA Min
15pF
10mS
100nS
PARAMETERS
Frequency Range
(Fo)
Storage Temperature Range (Tstg)
Supply Voltage
(Vdd)
Input Current
(Idd)
1.000 ~ 23.999 MHz
24.000 ~ 49.999 MHz
50.000 ~ 69.999 MHz
70.000 ~ 125.000 MHz
125.000 ~ 160.000 MHz
Output Symmetry (50% Vdd)
Rise Time (10% ~ 90% Vdd) (Tr)
Fall Time (90% ~ 10% Vdd) (Tf)
Output Voltage
(Vol)
(Voh)
Output Current
(Iol)
(Ioh)
Output Load
(HCMOS)
Start-up Time
(Ts)
Output Enable/Disable Time 2
ElEcTRicAl cHARAcTERiSTicS
MAX (unless otherwise noted)
Tri-State Enable/Disable 3.3V Oscillator
Rev. 9/18/2006
RoHS Compliant / Pb Free
Model: F5C-2E3LF Series
