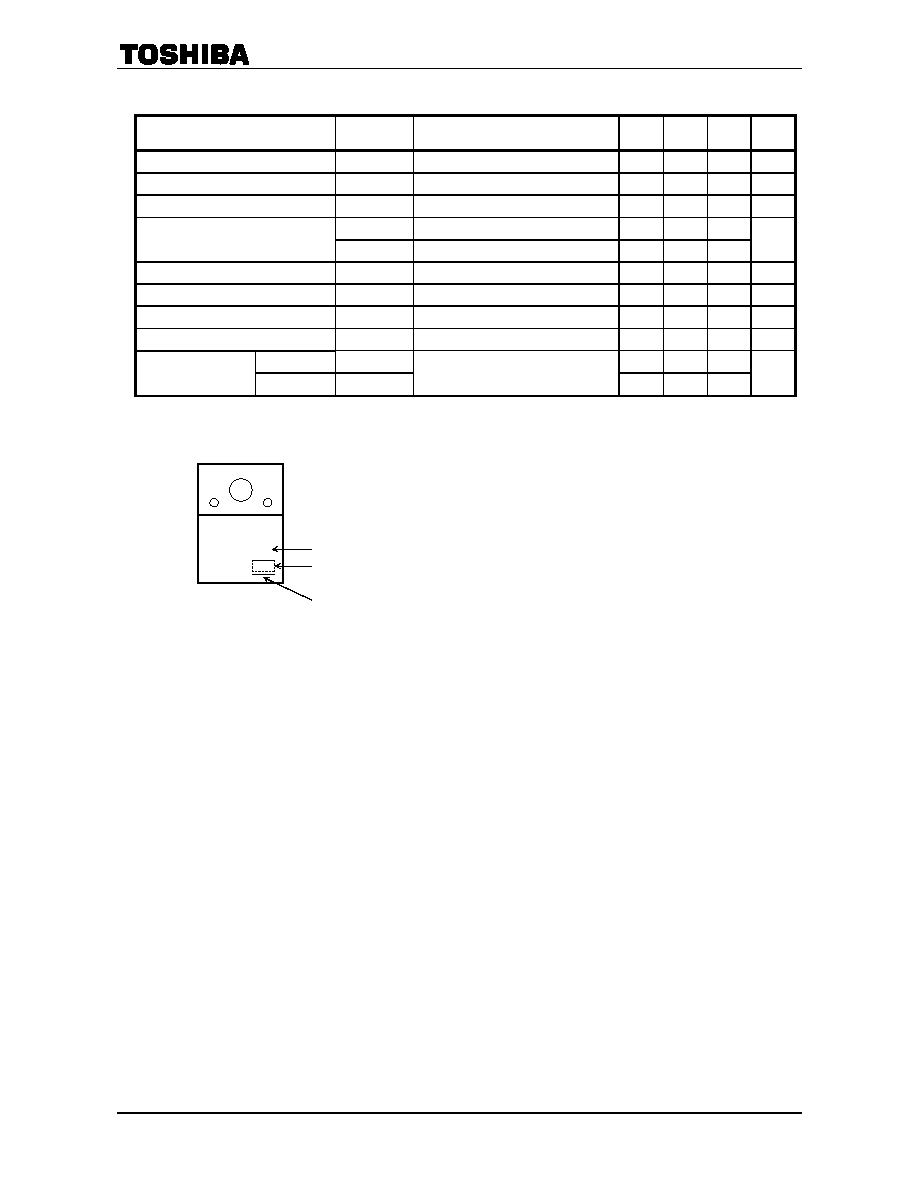

2SC5386
2006-11-22
2
ELECTRICAL CHARACTERISTICS (Tc = 25°C)
CHARACTERISTIC
SYMBOL
TEST CONDITION
MIN
TYP.
MAX
UNIT
Collector Cutoff Current
ICBO
VCB = 1500 V, IE = 0
―
1
mA
Emitter Cutoff Current
IEBO
VEB = 5 V, IC = 0
―
10
A
EmitterBase Breakdown Voltage
V (BR) CEO
IC = 10 mA, IB = 0
600
―
V
hFE (1)
VCE = 5 V, IC = 1 A
15
―
35
DC Current Gain
hFE (2)
VCE = 5 V, IC = 6 A
4.3
―
7.5
―
CollectorEmitter Saturation Voltage
VCE (sat)
IC = 6 A, IB = 1.5 A
―
3
V
BaseEmitter Saturation Voltage
VBE (sat)
IC = 6 A, IB = 1.5 A
―
1.0
1.5
V
Transition Frequency
fT
VCE = 10 V, IC = 0.1 A
―
1.7
―
MHz
Collector Output Capacitance
Cob
VCB = 10 V, IE = 0, f = 1 MHz
―
105
―
pF
Storage Time
tstg
―
2.5
3.5
Switching Time
Fall Time
tf
ICP = 5 A, IB1 (end) = 1.0 A
fH = 64 kHz
―
0.15
0.3
s
Marking
C5386
TOSHIBA
Part No. (or abbreviation code)
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
