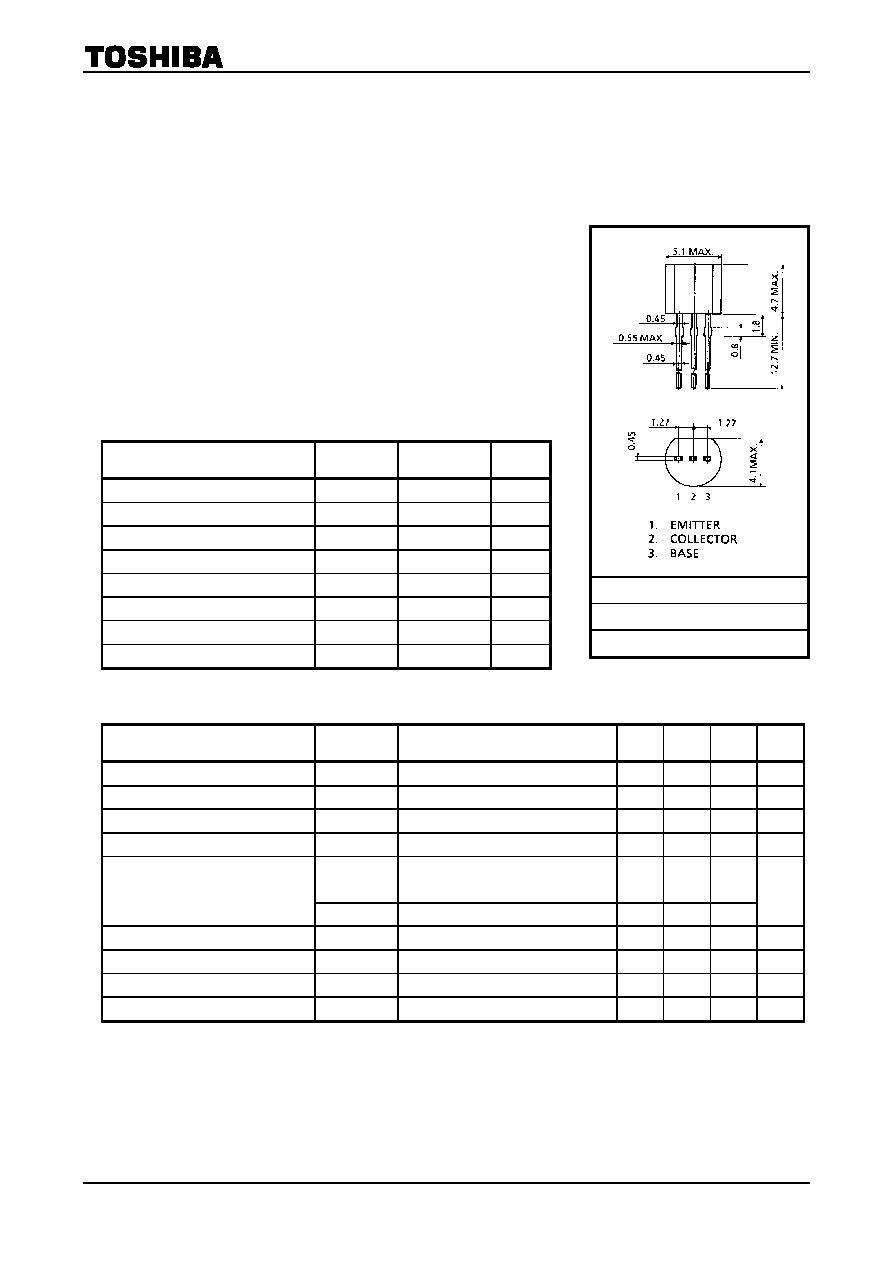

2SC2551
2003-03-25
1
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT process)
2SC2551
Hight Voltage Control Applications
Plasma Display, Nixie Tube Driver Applications
Cathode Ray Tube Brightness Control Applications
High voltage: VCBO = 300 V, VCEO = 300 V
Low saturation voltage: VCE (sat) = 0.5 V (max)
Small collector output capacitance: Cob = 3 pF (typ.)
Complementary to 2SA1091.
Maximum Ratings (Ta
==== 25°C)
Characteristics
Symbol
Rating
Unit
Collector-base voltage
VCBO
300
V
Collector-emitter voltage
VCEO
300
V
Emitter-base voltage
VEBO
6
V
Collector current
IC
100
mA
Base current
IB
20
mA
Collector power dissipation
PC
400
mW
Junction temperature
Tj
150
°C
Storage temperature range
Tstg
-55~150
°C
Electrical Characteristics (Ta
==== 25°C)
Characteristics
Symbol
Test Condition
Min
Typ.
Max
Unit
Collector cut-off current
ICBO
VCB = 300 V, IE = 0
0.1
mA
Emitter cut-off current
IEBO
VEB = 6 V, IC = 0
0.1
mA
Collector-base breakdown voltage
V (BR) CBO
IC = 0.1 mA, IE = 0
300
V
Collector-emitter breakdown voltage
V (BR) CEO
IC = 1 mA, IB = 0
300
V
hFE (1)
(Note)
VCE = 10 V, IC = 20 mA
30
150
DC current gain
hFE (2)
VCE = 10 V, IC = 1 mA
20
Collector-emitter saturation voltage
VCE (sat)
IC = 20 mA, IB = 2 mA
0.5
V
Base-emitter saturation voltage
VBE (sat)
IC = 20 mA, IB = 2 mA
50
1.2
V
Transition frequency
fT
VCE = 10 V, IC = 20 mA
80
MHz
Collector output capacitance
Cob
VCB = 20 V, IE = 0, f = 1 MHz
3
4
pF
Note: hFE (1) classification R: 30~90, O: 50~150
Industrial Applications
Unit: mm
JEDEC
TO-92
JEITA
SC-43
TOSHIBA
2-5F1B
Weight: 0.21 g (typ.)
