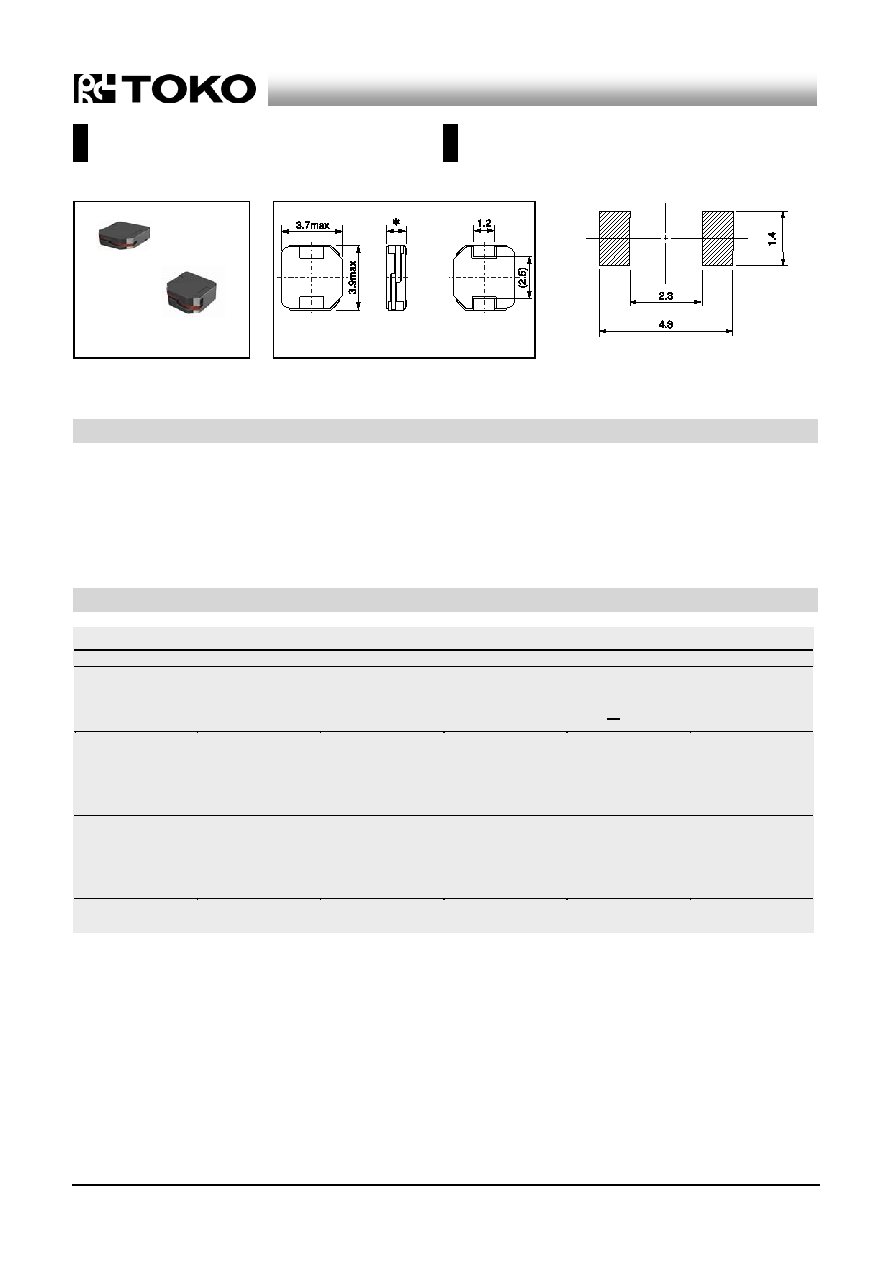

DE3512C/DEM3518C
Inductance Range: 0.68~22
μH (DE3512C), 0.56~22μH (DEM3518C)
DE3512C
DEM3518C
(Unit: mm)
*DE3512C: 1.2mm Max.
DEM3518C: 1.8mm Max.
FEATURES
Low profile (3.5 × 3.7mm square, 1.2 and 1.8mm Max.
height).
Magnetically shielded construction and low DC resistance.
Ideal for a variety of DC-DC converter inductor applications.
(DVC,DSC,Cellular phone,PDA)
RoHS compliant.
(3.5
× 3.7mm ,
1.2
1.8mm Max.)
DC-DC
(DVC,DSC,Cellular phone,PDA)
RoHS
TOKO STANDARD PART NUMBERS
TYPE DE3512C (Magnetically Shielded)
(Quantity/reel; 2,000 PCS)
(1)
(2)
(3)
TOKO
Part
Number
Inductance
(1)
(
μH)
Tolerance
(%)
DC
Resistance
(2)
(m
Ω) Max. (Typ.)
Inductance
Decrease Current
(3)
(A) Max. (Typ.)
=30%
Temperature
Rise Current
(3)
ΔT=40°C
(A) Max. (Typ.)
1094AS-R68N
0.68
± 30
36 (30)
2.10 (2.80)
2.70 (3.20)
1094AS-1R0N
1.0
± 30
46 (38)
1.80 (2.40)
2.40 (2.90)
1094AS-1R5N
1.5
± 30
54 (45)
1.50 (2.00)
2.20 (2.60)
1094AS-2R0M
2.0
± 20
64 (53)
1.30 (1.80)
2.00 (2.40)
1094AS-2R7M
2.7
± 20
72 (60)
1.20 (1.60)
1.90 (2.20)
1094AS-3R3M
3.3
± 20
78 (65)
1.00 (1.40)
1.80 (2.10)
1094AS-4R7M
4.7
± 20
100 (83)
0.85 (1.20)
1.60 (1.90)
1094AS-6R8M
6.8
± 20
138 (115)
0.69 (0.93)
1.30 (1.60)
1094AS-100M
10.0
± 20
216 (180)
0.57 (0.76)
1.00 (1.20)
1094AS-120M
12.0
± 20
276 (230)
0.52 (0.69)
0.89 (1.00)
1094AS-150M
15.0
± 20
354 (295)
0.47 (0.62)
0.75 (0.88)
1094AS-220M
22.0
± 20
468 (390)
0.37 (0.50)
0.65 (0.77)
continued on next page
ΔL
L
Recommended patterns
Fixed Inductors for Surface Mounting
