參數資料
| 型號： | 0010441161 |
| 廠商： | MOLEX INC |
| 元件分類： | 電路板相疊連接器 |
| 英文描述： | 16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| 文件頁數： | 1/2頁 |
| 文件大?。?/td> | 23K |
| 代理商： | 0010441161 |

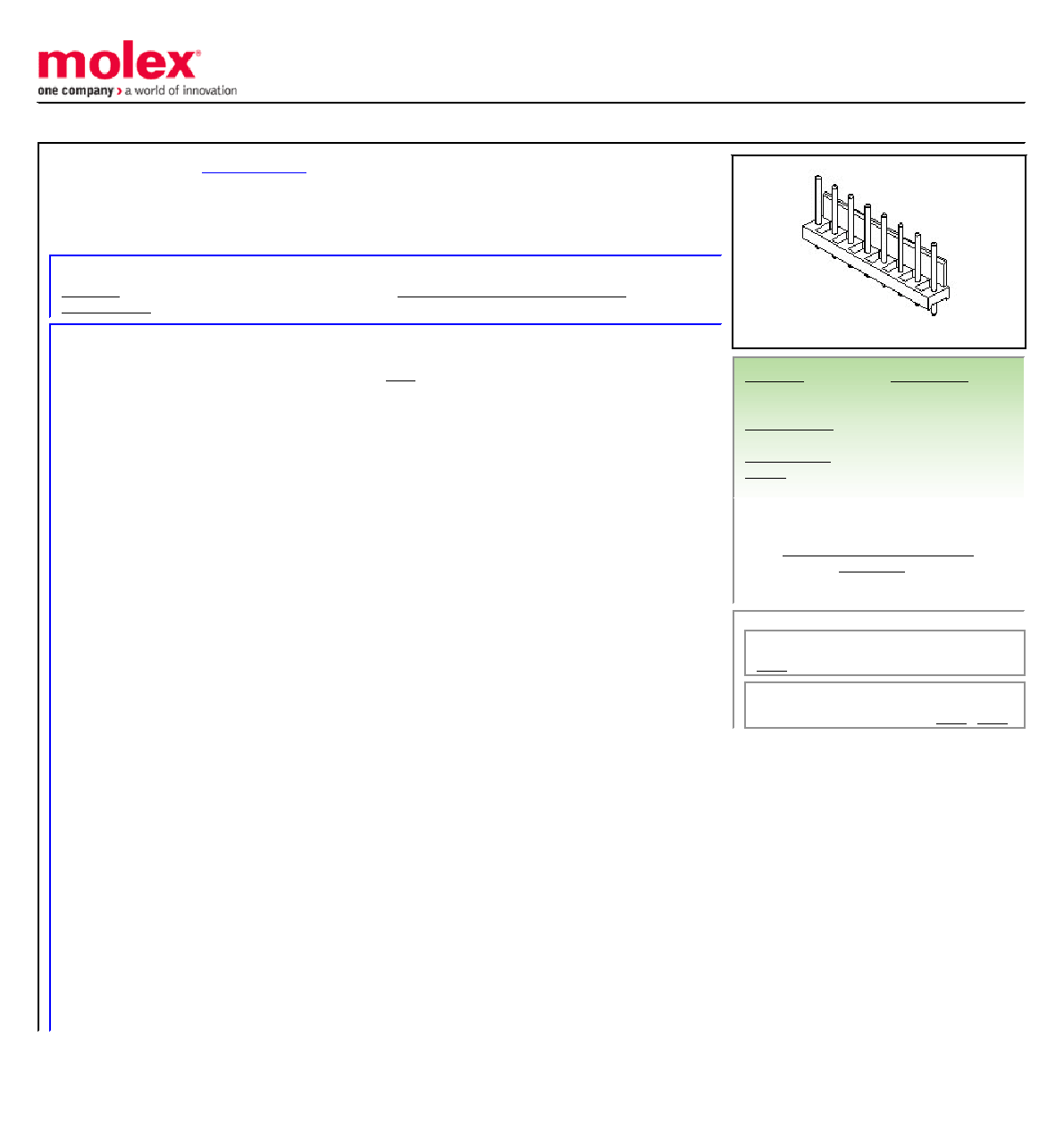

This document was generated on 11/16/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
5.08mm (.200") Pitch KK Header, Vertical, with Polarizing Backwall, 16 Circuits, Gold
(Au) Plating
Documents:
General
Product Family
PCB Headers
Series
Application
Wire-to-Board
Overview
KK®
Product Name
KK
Physical
Breakaway
No
Circuits (Loaded)
16
Circuits (maximum)
16
Color - Resin
Natural
Durability (mating cycles max)
50
First Mate / Last Break
No
Glow-Wire Compliant
No
Guide to Mating Part
No
Keying to Mating Part
None
Lock to Mating Part
None
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Plating Termination
Nickel
Material - Resin
Nylon
Number of Rows
1
Orientation
Vertical
PC Tail Length (in)
0.175 In
PC Tail Length (mm)
4.45 mm
PCB Retention
None
PCB Thickness Recommended (in)
0.062 In
PCB Thickness Recommended (mm)
1.60 mm
Packaging Type
Bag
Pitch - Mating Interface (in)
0.200 In
Pitch - Mating Interface (mm)
5.08 mm
Shrouded
Partial
Stackable
Yes
Surface Mount Compatible (SMC)
No
Temperature Range - Operating
0°C to +75°C
Termination Interface: Style
Through Hole
Electrical
Current - Maximum
7A
Voltage - Maximum
250V
Material Info
Old Part Number
2599-16AG
Series image - Reference only
Compliance Status
Not Reviewed
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
2599 Series
Mates With
This document was generated on 11/16/2009
